Name: Electronic Laboratory Fog Tester Cyclic Corrosion Simulate Salt Spray Chamber ASTM Standard Air Usa for Lab Applications
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY120-480L
Price: 2000 USD
Availability: InStock

집 > 상품 > 환경 테스트 챔버 >

Electronic Laboratory Fog Tester Cyclic Corrosion Simulate Salt Spray Chamber ASTM Standard Air Usa for Lab Applications

Electronic Laboratory Fog Tester

Cyclic Corrosion Salt Spray Chamber

ASTM Standard Environmental Test Chamber

원래 장소:

중국

브랜드 이름:

YUYANG

인증:

모델 번호:

YY120-480L

저희와 연락

인용문을 요구하세요

제품 세부 정보

테스트 룸 크기 (WXLXH) (MM):

1200*1000*500

기계 크기(WxLxH)(mm):

1410*880*1280

실험실 온도:

NSS.ACSS 35°C ± 1°C / CASS 50°C ± 1°C

세츄레이터 온도:

NSS.ACSS 35°C ± 1°C / CASS 50°C ± 1°C

습기:

85%~98%RH

온도 범위:

± 0.5oC

염수 분무 가라앉다:

1.0~2.0ml/80cm2/h

전원공급장치:

AC220V 50Hz

강조하다:

Electronic Laboratory Fog Tester

Cyclic Corrosion Salt Spray Chamber

ASTM Standard Environmental Test Chamber

지불 및 배송 조건

최소 주문 수량

1세트

가격

$2000

포장 세부 사항

합판 상자

배달 시간

5-10 근무일

지불 조건

T/T, L/C, 웨스턴 유니온

공급 능력

달 당 200 세트

Large Capacity Salt Spray Corrosion Test Box for Various Material Testing

가장 좋은 가격 을 구하라

비디오

Titanium Alloy Salt Fog Test Chamber for Hardware and Chemical Components

가장 좋은 가격 을 구하라

비디오

Industrial Electronic Power Continuous Salt Spray Corrosion Tester 220V Saline Spray for Test Machine with 1 Year Warranty

가장 좋은 가격 을 구하라

비디오

220V Electronic Salt Fog Corrosion Testing Machine Wave Style Salt Spray Aging Chamber 1 Year Warranty Salt Mist Resistance

가장 좋은 가격 을 구하라

저희와 연락

8613265296009

sales13@yuyangtest.com

86-769-26622869

지금 연락하세요

제품 설명

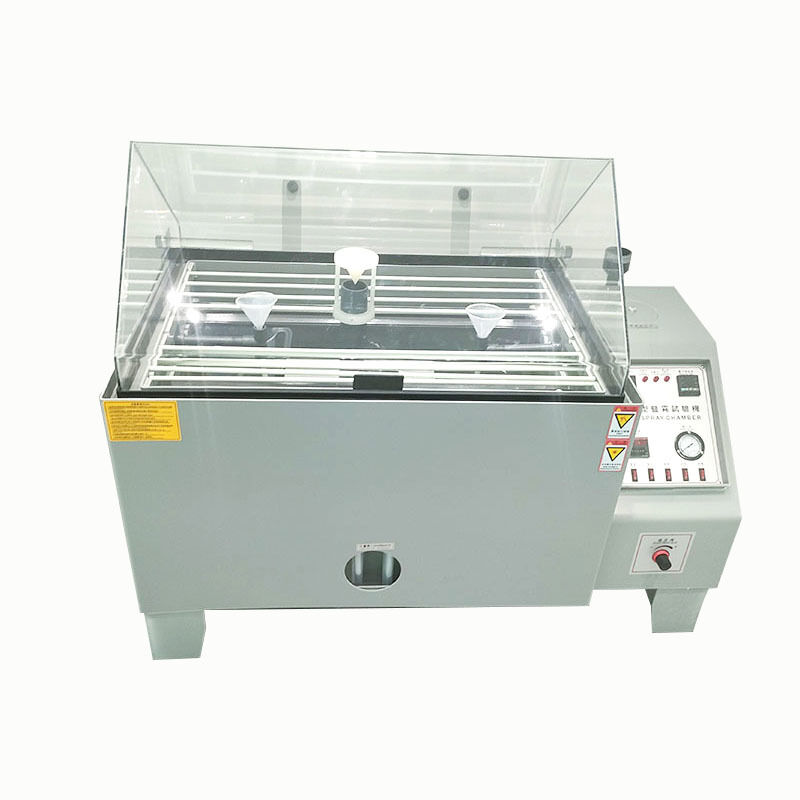

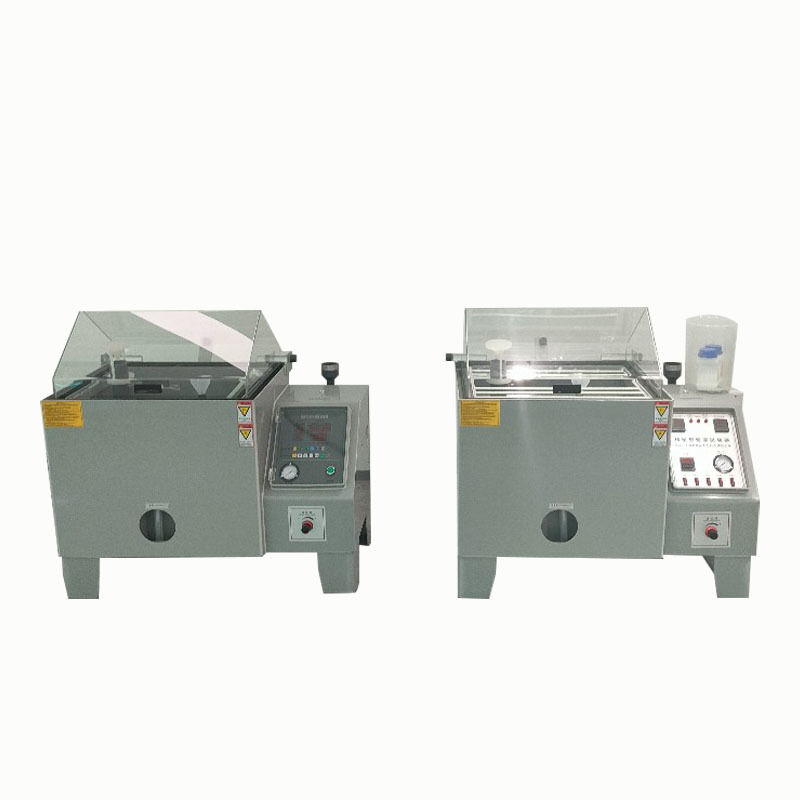

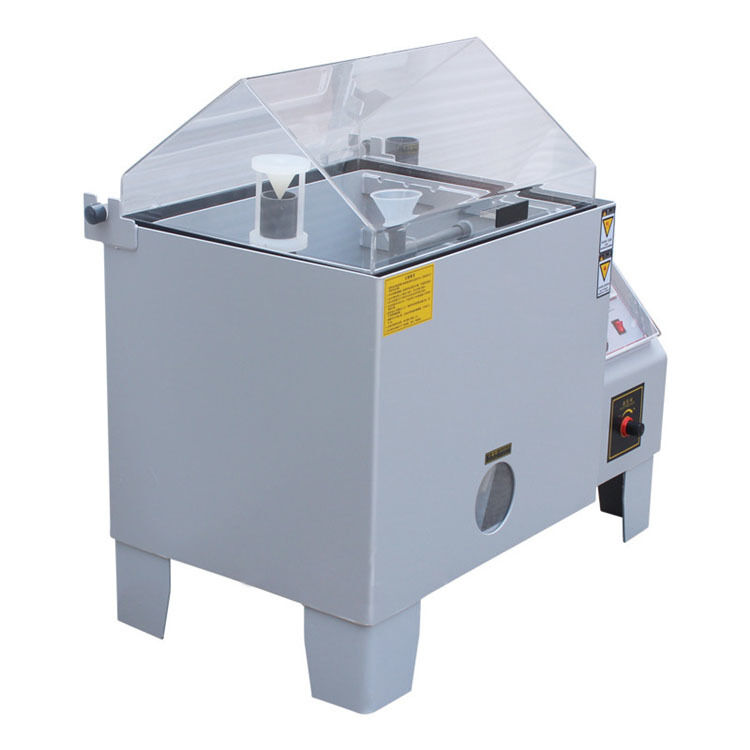

Electronic Laboratory Fog Tester Cyclic Corrosion Simulate Salt Spray Chamber

This ASTM standard compliant cyclic corrosion simulation tester is designed for laboratory applications, meeting rigorous testing requirements for material corrosion resistance evaluation.

YY120-480L Salt Spray Test Chamber

Product Overview

This advanced salt spray test chamber evaluates corrosion resistance of surface-treated materials including paints, electroplating, organic and inorganic coatings, anode processing, and anti-rust oils after anti-corrosive treatment.

Construction Materials

Laboratory chamber constructed from 5mm thick PVC sheet, capable of withstanding temperatures up to 80°C
Laboratory closure features 6mm thick high-impact acrylic sheet
Reagent supplementary bottles include water level perspective windows with hidden viewing areas for easy cleaning and durability
Saturated air barrel manufactured from SUS #304 stainless steel for optimal insulation and pressure resistance
Laboratory basket features flat indexing frame with adjustable angles, ensuring uniform mist distribution across test specimens

Compliance Standards

GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201, H8502, H8610, K5400 Z2371

Technical Specifications

Model	YY120-480L
Test Room Size (W×L×H)	1200 × 1000 × 500 mm
Machine Size (W×L×H)	1410 × 880 × 1280 mm
Laboratory Temperature	NSS/ACSS: 35°C ± 1°C / CASS: 50°C ± 1°C
Saturator Temperature	NSS/ACSS: 35°C ± 1°C / CASS: 50°C ± 1°C
Humidity	85% ~ 98% RH
Temperature Range	± 0.5°C
Salt Spray Settling Rate	1.0 ~ 2.0 ml/80cm²/h
Power Supply	AC220V 50HZ
