Name: PV Module Damp Heat Constant Humidity Chamber IEC 61215 61646 Programmable Environmental Test
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYE009-100L
Price: 2000 USD
Availability: InStock

집 > 상품 > 환경 테스트 챔버 >

PV Module Damp Heat Constant Humidity Chamber IEC 61215 61646 Programmable Environmental Test

PV module damp heat test chamber

programmable humidity test chamber

IEC 61215 environmental test chamber

원래 장소:

중국

브랜드 이름:

YUYANG

인증:

모델 번호:

YYE009-100L

저희와 연락

인용문을 요구하세요

제품 세부 정보

내부 크기: WHD(mm):

500*400*500

외부사이즈 : WHD(mm):

1000*1000*1400

온도 범위:

+70oC에게 -20oC

습도 범위:

10%~85% 상대습도

온도 분석 정확도/균일성:

0.1°C/±2.0°C

온도 변동:

± 0.5ºC

습도 분석적 accuracy/ 습도 제어 정밀도:

±0.1%;±3%

열; 냉각 시간:

약 3.0°C/min 가열; 약 1.0°C/min 냉각

힘:

AC220V 50/60Hz & 1

체중(kg):

180kg

가열 시간:

3℃/min(평균상승률)

냉각 시간:

1℃/min(평균 터널링 속도)

강조하다:

PV module damp heat test chamber

programmable humidity test chamber

IEC 61215 environmental test chamber

지불 및 배송 조건

최소 주문 수량

1세트

가격

$2000

포장 세부 사항

합판 상자

배달 시간

5-10 근무일

지불 조건

T/T, L/C, 웨스턴 유니온

공급 능력

달 당 200 세트

Food Fermentation Constant Temperature Humidity Chamber Programmable Environmental Quality Test

가장 좋은 가격 을 구하라

비디오

Seed Germination Constant Temperature Humidity Chamber Plant Growth Simulation LED Light Optional

가장 좋은 가격 을 구하라

비디오

Medical Device Cosmetic Stability Temperature Humidity Chamber GMP Environmental CE Certified

가장 좋은 가격 을 구하라

비디오

Custom OEM ODM Constant Temperature Humidity Test Chamber Climatic Environmental Manufacturer

가장 좋은 가격 을 구하라

저희와 연락

8613265296009

sales13@yuyangtest.com

86-769-26622869

지금 연락하세요

제품 설명

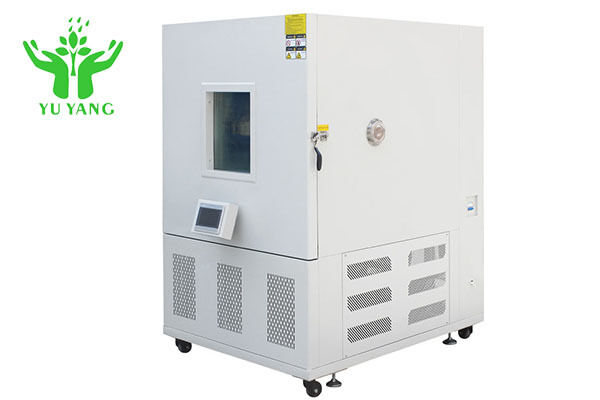

PV Module Damp Heat Constant Humidity Chamber

IEC 61215 61646 Programmable Environmental Test Chamber for comprehensive environmental testing of photovoltaic modules and electronic components.

Application

This environmental test chamber evaluates material resistance to heat, cold, dry conditions, and humidity. Suitable for testing electronics, electrical appliances, communications equipment, instrumentation, automotive components, plastic products, metals, food products, chemicals, building materials, aerospace components, and various industrial products.

Features

Precise and durable conditioning system with quick and constant environmental conditions
Humidity range: 5% to 98% R.H. ±0.5%
Temperature range: -20°C to 150°C ±0.5°C
Comprehensive testing capabilities for heat, cold, dry, and humidity resistance
Ideal for conditioning various samples prior to testing
Widely used in electronics, electrical equipment, automotive, metal, food, chemical, building materials, and packaging industries

Technical Parameters

Parameter	Specification
Model	YYE009-100L
Inner Size (W×H×D)	500×400×500 mm
External Size (W×H×D)	1000×1000×1400 mm
Temperature Range	-20ºC to +70ºC
Humidity Range	10%~85% R.H.
Temperature Analytic Accuracy/Uniformity	0.1ºC/±2.0ºC
Temperature Fluctuation	±0.5ºC
Humidity Analytic Accuracy/Control Accuracy	±0.1%;±3%
Heating Rate	3.0°C/min (average)
Cooling Rate	1.0°C/min (average)
Power Supply	AC220V 50/60Hz
Weight	180 kg

Compliance Standards

GB/T2423.1-2008, GB/T2423.2-2008, GB/T2423.3-2006, GB/T2423.4-2008, GB10589-2008, GB11158-2008, GB10586-2006, GJB150.3-1986, GJB150.4-1986, GJB150.9-1986
