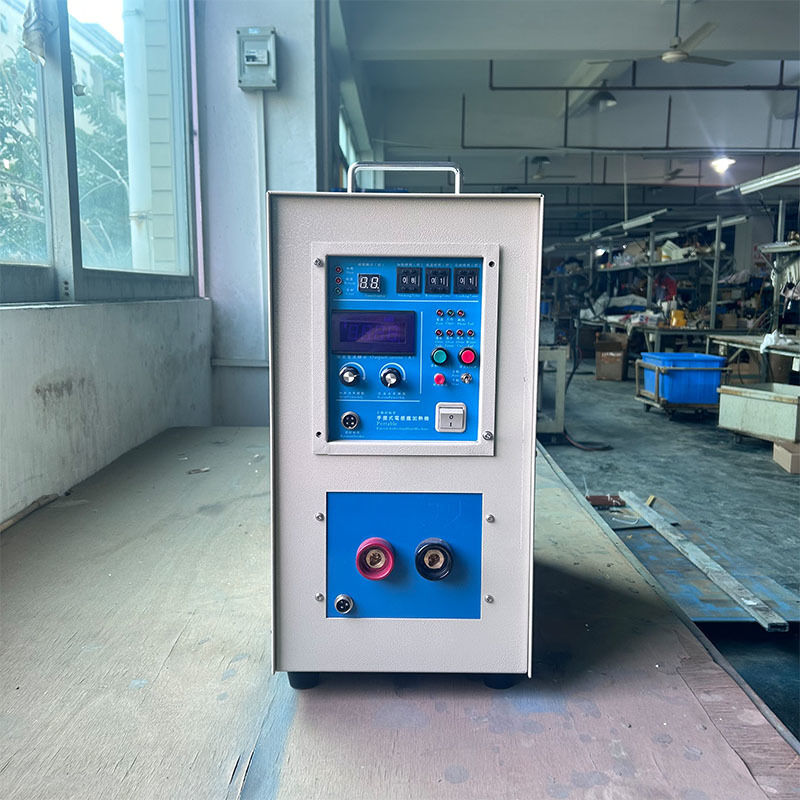

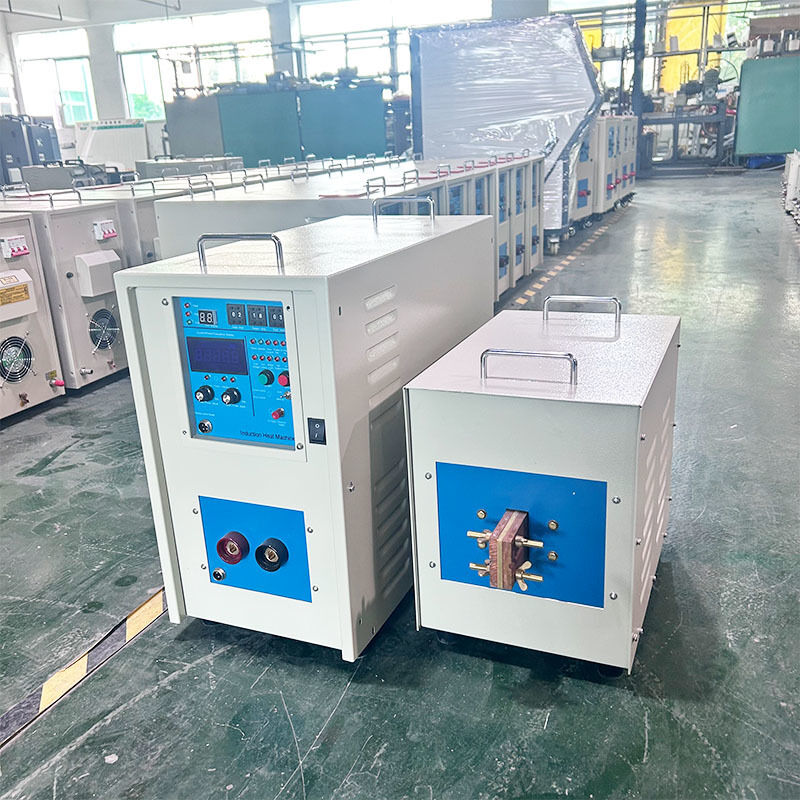

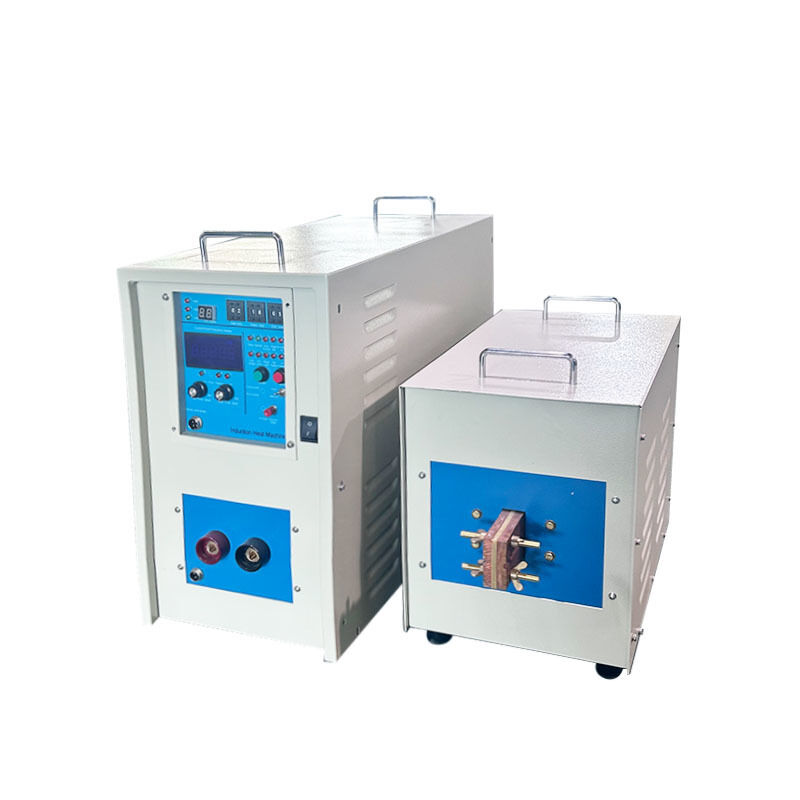

High Frequency Electromagnetic Induction Heating Generator for Steel Bar
This advanced induction heating generator is specifically designed for metal and metallurgy machinery applications, offering efficient and precise heating solutions for steel bars and various metal components.
Key Characteristics
- IGBT inverting technology with automatic frequency tracking
- High-frequency operation with rapid heating capability
- Energy efficient - consumes only 20-30% of traditional electronic tube induction heating systems
- Comprehensive safety features including secure voltage operation
- Manual and automatic regulation with over-voltage, over-current, water deficiency, phase failure, and overheating protection
- Environmentally friendly operation - no open flame, noise, or pollution
- Ideal for brazing, welding, forging, hot cooperation, melting, quenching, and annealing applications
Advanced Features
Utilizing state-of-the-art electrical components and innovative techniques, this high-frequency induction heating machine provides rapid, localized metal heating. The system can penetrate non-metallic materials to heat underlying metals to fusion temperatures without direct contact, offering safe, economical, and pollution-free technical solutions.
Product Advantages
- Portable design - 80% space savings and 75% weight reduction compared to traditional transformers
- Monolithic shell construction resistant to weak acids and alkalis
- Advanced amorphous magnetic core material for complex metallic heating applications
- Wide frequency range suitable for irregular shaped workpieces
- Rapid heating capability with 8-second warm-up time
- Stable magnetic field output ensuring consistent heating performance
- Ideal for air conditioning, refrigeration, and complex welding applications
Technical Parameters
| Model |
YYH-60AB (Three phase) |
| Work Power |
340v-430v |
| Maximum Input Current |
90A |
| Output Power |
60kw |
| Fluctuating Frequency |
50-150KHZ |
| Cooling Water Flow Rate |
0.2Mpa, 6L/min |
| Water Temperature Protection |
50°C |
| Main Unit Dimensions |
640×350×550mm |
| Transformer Dimensions |
510×300×450mm |
| Main Unit Net Weight |
50kg |
| Transformer Net Weight |
28kg |
Application Areas
- Brazing applications: copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper
- Glasses welding, fishing tool welding, hardware appliances welding
- Carbide saw and saw-tooth welding, carbide blade welding
- Jewelry and watch manufacturing welding
- Electronic industry: motor rotor hot-cooperation, electrode silver and tin soldering
- Metal implants, bulb electrode manufacturing
- Band accessory soldering, golf head production, pipe welding
- Communication equipment soldering, copper coaxial cable connector soldering
