Industrial Grade Induction Heater With Custom Power for 24H Metal Processing Operations Order From One Machine

Industrial Grade Induction Heater With Custom Power for 24H Metal Processing Operations Order From One Machine

industrial induction heater for metal processing

custom power induction heater

24-hour operation induction heater

원래 장소:

중국

브랜드 이름:

YUYANG

인증:

CE

모델 번호:

YYH-30AB

저희와 연락
인용문을 요구하세요
Industrial Grade Induction Heater With Custom Power for 24H Metal Processing Operations Order From One Machine
Industrial Grade Induction Heater With Custom Power for 24H Metal Processing Operations Order From One Machine Industrial Grade Induction Heater With Custom Power for 24H Metal Processing Operations Order From One Machine Industrial Grade Induction Heater With Custom Power for 24H Metal Processing Operations Order From One Machine
제품 세부 정보
최대 변동력:
30KW
노동력:
340V-430V
최대 입력 전류:
45A
출력 전력:
30KW
변동하는 주파수:
50-200khz
냉각수의 유량:
0.2Mpa, 6L/분
수온 보호 포인트:
40C
제품 크기:
560x260x560mm
정미중량 :
29KG
강조하다:

industrial induction heater for metal processing

,

custom power induction heater

,

24-hour operation induction heater

지불 및 배송 조건
최소 주문 수량
1세트
가격
$2000
포장 세부 사항
합판 상자
배달 시간
5-10 근무일
지불 조건
T/T, L/C, 웨스턴 유니온
공급 능력
달 당 200 세트
관련 제품
좋은 가격 High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery 온라인으로 비디오

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

가장 좋은 가격 을 구하라
좋은 가격 Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v 온라인으로 비디오

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

가장 좋은 가격 을 구하라
좋은 가격 15KW 고주파 유도 가열기 신규 금속 구리 파이프 와이어 용접 제조 설비 건설 모터 엔진 온라인으로 비디오

15KW 고주파 유도 가열기 신규 금속 구리 파이프 와이어 용접 제조 설비 건설 모터 엔진

가장 좋은 가격 을 구하라
좋은 가격 20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery 온라인으로 비디오

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

가장 좋은 가격 을 구하라
저희와 연락
8613265296009
sales13@yuyangtest.com
86-769-26622869
지금 연락하세요
제품 설명

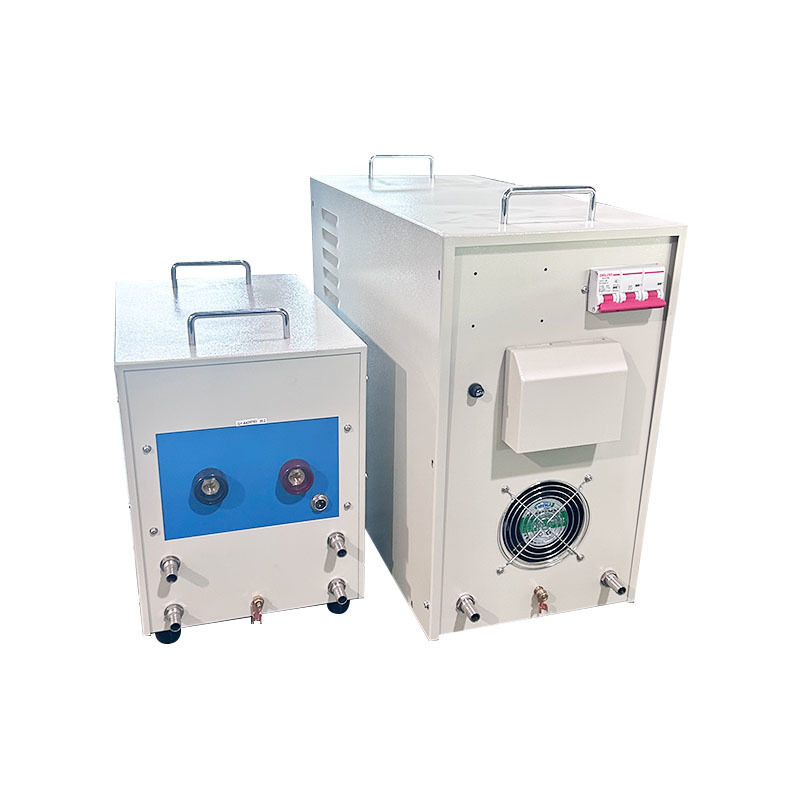

Industrial Grade Induction Heater
Custom Power Solution for 24-Hour Metal Processing Operations
Product Overview
Our industrial-grade induction heating machine delivers reliable performance for continuous metal processing operations with advanced IGBT inverter technology and automatic frequency tracking.
Key Characteristics
  • Advanced IGBT inverter device with automatic frequency tracking
  • High-frequency operation provides rapid heating with only 20-30% power consumption compared to electronic tube induction heaters
  • Secure and reliable operation with safe voltage equipment
  • Manual and automatic regulation with comprehensive protection against over-voltage, over-current, water shortage, phase failure, and overheating
  • Environmentally friendly operation with no open flame, noise, or pollution
  • Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing applications
Advanced Features
Our high-frequency induction heating machines incorporate the most advanced electrical components and innovative techniques. They enable rapid, localized metal heating and can penetrate non-metallic materials to fuse metals without direct contact, providing safe, economical, and pollution-free technical solutions.
Product Advantages
  • Portable design: Integrated construction saves over 80% space and 75% weight compared to traditional transformers
  • Monolithic shell design with resistance to weak acids and alkalis
  • Advanced amorphous magnetic core material for complex metallic heating applications
  • Wide frequency range suitable for irregular shaped workpieces
  • Efficient heating with 8-second warm-up for air conditioning and refrigerator industry applications
  • Stable magnetic field output ensures consistent long-term heating performance
Technical Specifications
Model YYH-30AB (Three Phase)
Work Power 340V-430V
Maximum Input Current 45A
Output Power 30kW
Fluctuating Frequency 50-200kHz
Cooling Water Flow Rate 0.2MPa, 6L/min
Water Temperature Protection 40°C
Main Unit Dimensions 560×260×560mm
Transformer Dimensions 390×260×370mm
Main Unit Net Weight 29kg
Transformer Net Weight 24kg
Application Areas
  • Brazing materials: copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper brazing
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and saw-tooth welding, carbide blade welding
  • Jewelry and watch welding
  • Electronic industry: motor rotor hot-cooperation, electrode silver and tin soldering
  • Metal implants, bulb electrode fabrication
  • Band accessory soldering, golf head manufacturing, pipe welding
  • Communication equipment soldering, copper coaxial cable connector soldering
Industrial Grade Induction Heater With Custom Power for 24H Metal Processing Operations Order From One Machine 0 Industrial Grade Induction Heater With Custom Power for 24H Metal Processing Operations Order From One Machine 1
Company Information
Based in Guangdong, China, established in 2018. We serve global markets including South Asia (20%), Eastern Asia (20%), Domestic Market (15%), Southeast Asia (15%), Eastern Europe (10%), North America (10%), Oceania (5%), and Western Europe (5%). Our team consists of 11-50 professionals dedicated to quality manufacturing.
Quality Assurance
  • Pre-production samples provided before mass production
  • Final inspection conducted before shipment
Product Range
We specialize in Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, and Wire and Cable Test Machines.
Service Details
Delivery Terms: FOB, CFR, CIF, EXW
Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Accepted Currencies: USD, EUR, JPY, AUD, HKD, GBP, CNY
Languages: English, Chinese
