Name: Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: Yye009
Price: 11957 USD
Availability: InStock

집 > 상품 > 환경 테스트 챔버 >

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

Constant Temperature Test Chamber

Humidity Stability Testing Equipment

Environmental Test Chamber with Warranty

원래 장소:

중국

브랜드 이름:

YUYANG

인증:

모델 번호:

Yye009

저희와 연락

인용문을 요구하세요

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

제품 세부 정보

힘:

220V

온도 범위:

-40°C~+150°C

습도 범위:

상대습도 20%~98%

냉각 시간:

1°C/min(평균 냉각 속도)

체중(kg):

120KG

열:

약 3.0°C/min 가열

강조하다:

Constant Temperature Test Chamber

Humidity Stability Testing Equipment

Environmental Test Chamber with Warranty

지불 및 배송 조건

최소 주문 수량

1개

가격

negotiable

포장 세부 사항

나무 상자

배달 시간

7~30일

지불 조건

L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram

공급 능력

달 당 5 PC

Salt Spray Cyclic Corrosion Test Chamber Test Equipment for Electronics

가장 좋은 가격 을 구하라

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

가장 좋은 가격 을 구하라

Laboratory Salt Spray Test Chamber for Corrosion Test Environmental Climate Test Chamber

가장 좋은 가격 을 구하라

비디오

항온항습 시험 챔버용 환경 기후 시험 장비

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

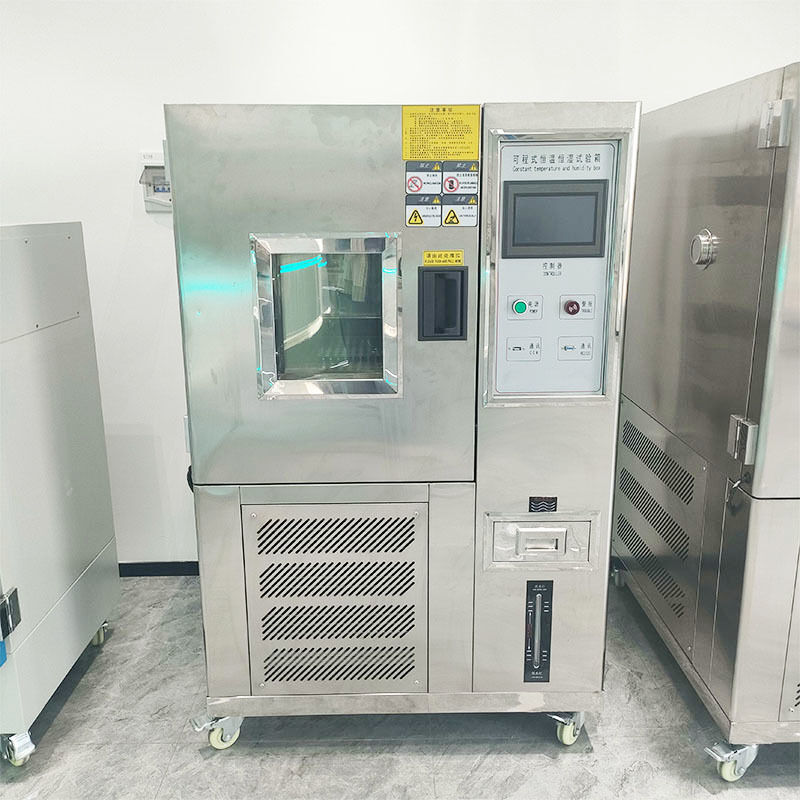

Constant Temperature and Humidity Testing Equipment

Professional environmental test chamber designed for stability testing under controlled temperature and humidity conditions.

Applications

This equipment tests material resistance to heat, cold, dry, and humid conditions. Suitable for electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, aerospace products, and more.

Key Features

Precise control from 5% to 98% R.H. ±0.5% and -20°C to 150°C ±0.5°C
Widely used for heat, cold, dry, and humidity resistance testing
Ideal for conditioning samples prior to testing
Designed for quality control across multiple industries including electronics, electrical equipment, automotive, metals, foodstuffs, chemicals, and building materials

Technical Specifications

Model	YYE009-50L
Inner Size (W×H×D)	35×36×40 cm
External Size (W×H×D)	48×61×110 cm
Temperature Range	-20°C to +150°C
Humidity Range	20% to 98% R.H.
Temperature Accuracy/Uniformity	0.1°C / ±2.0°C
Temperature Fluctuation	±0.5°C
Humidity Accuracy/Control Accuracy	±0.1% / ±2.5%
Heating/Cooling Rate	Heating: ~3.0°C/min; Cooling: ~1.0°C/min
Chamber Materials	Inner: SUS#304 Stainless Steel; Outer: Advanced cold plate nano paint
Insulation Materials	High-temperature resistant, high-density foam insulation
Cooling System	Air cooling/single segment compressor (-20°C)
Power Supply	AC220V 50/60Hz & 1
Weight	120 kg

Standard Components

Watching window
50mm testing hole
PL internal bulbs
Wet and dry bulb gauze
Partition plate
Castors ×4
Foot cups ×4

Safety Protection

Fuse switch
Compressor overload switch
Refrigerant high and low pressure protection switch
Super humidity over-temperature protection switch
Fuse protection
Failure warning system

About YUYANG Instrument

DONGGUAN YUYANG INSTRUMENT CO., LTD. is a high-tech enterprise specializing in the R&D and manufacturing of testing equipment including fire testing equipment, environmental test chambers, textile testing equipment, and more. With decades of experience, YUYANG maintains a leading position in providing high-quality, cost-effective testing solutions that comply with international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, and IEC.

Our products serve numerous sectors including scientific research institutions, universities, inspection authorities, automotive parts, electronics, electrical appliances, lithium batteries, plastics, telecommunications, aerospace, and textiles.
