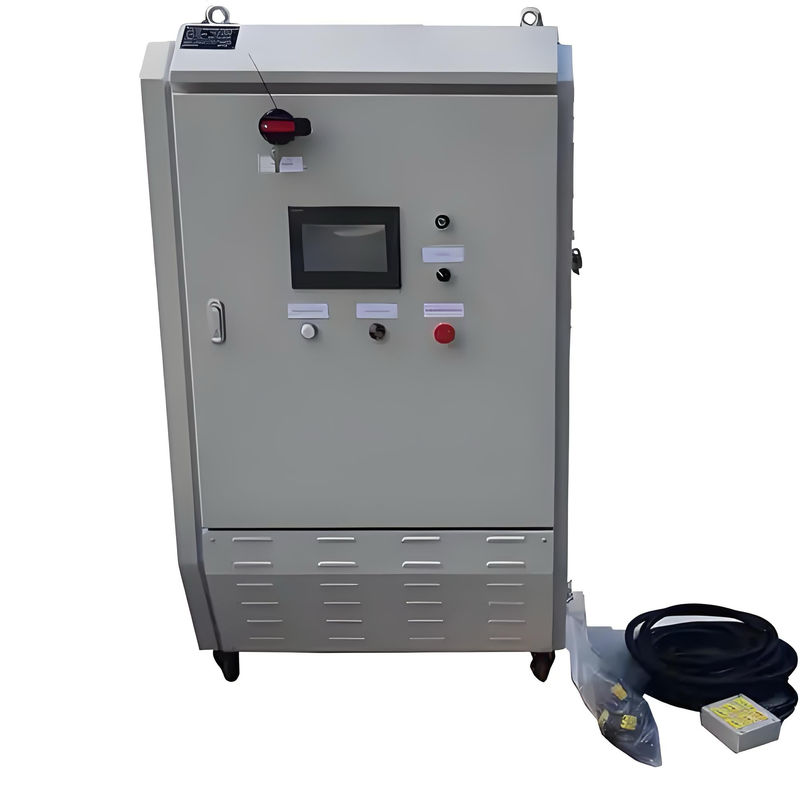

Name: 160kw DSP fully digital control - Special equipment for melting Wire Continuous Annealing Machine With Induction Heating Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYD-100AB
Price: 313,500.00 USD
Availability: InStock

집 > 상품 > 전기 시험 세트 >

160kw DSP fully digital control - Special equipment for melting Wire Continuous Annealing Machine With Induction Heating Machine

160kw DSP digital control annealing machine

induction heating machine for wire melting

continuous annealing machine with DSP control

원래 장소:

중국

브랜드 이름:

YUYANG

인증:

CE, ISO

모델 번호:

YYD-100AB

저희와 연락

인용문을 요구하세요

제품 세부 정보

정격출력:

160kw

주파수 범위:

30-80kHz

현재 입력:

240A

Product size:

main :1090x650x1610 mm; transformer :980x480x850 mm

Net Weight:

main : 265kg；transformer : 138kg

총중량:

50c

듀티 사이클:

100%

상표:

YUYANG

찬물의 흐름율::

0.08-0.16Mpa 12L/분

노동력:

340V-430V

강조하다:

160kw DSP digital control annealing machine

induction heating machine for wire melting

continuous annealing machine with DSP control

지불 및 배송 조건

최소 주문 수량

세트/세트

가격

US $ 613000-14000

포장 세부 사항

1160 x 1040 x 1320mm

배달 시간

5~15일

지불 조건

L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram

공급 능력

달 당 100 세트

100kw DSP fully digital control - Special equipment for melting and overall hot forging Induction Heating LGBT High Quality

가장 좋은 가격 을 구하라

비디오

Touchscreen Frequency Induction Heating 300kw LGBT High Quality Heat Automatic Sealing Machine Shaft Quenching Machine

가장 좋은 가격 을 구하라

비디오

Touchscreen Frequency Induction Heating 200kw LGBT High Quality HeatFor Pipeline Surface Induction Heat Treatment Machine

가장 좋은 가격 을 구하라

비디오

Touchscreen Frequency Induction Heating 120kw LGBT High Quality Heat Treatment Machine From Professional Manufacturer

가장 좋은 가격 을 구하라

저희와 연락

8613825721469

sales06@yuyangtest.com

86-769-26622869

지금 연락하세요

제품 설명

160kW DSP Fully Digital Control - Special Equipment for Melting Wire Continuous Annealing Machine with Induction Heating Machine

Product Overview

This advanced induction heating equipment features IGBT inverter circuits in parallel connection, offering exceptional load adaptability and superior performance for industrial heating applications.

Key Advantages

High power output with rapid heating speed and operational efficiency
Significantly improved economic benefits compared to traditional heating methods
Enhanced workpiece quality with energy and material savings
Compact design saving up to 10 times production space
Safe operation without high-voltage equipment requirements
24-hour continuous operation capability with full load design

Application Areas

Heating Applications

Hot forging for shaping workpieces using punch presses and forging machines
Hot fitting for metal connections and composite materials
Smelting for melting metals into liquid form

Heat Treatment (Surface Quench)

Quenching for tools, automotive parts, electric tools, and machine tools
Quench for various hardware metal parts and machined components
Quench for hardware molds, small-size molds, and mold accessories
Hardening of mechanical parts, gears, shafts, and mold components

Welding Applications

Braze welding, silver soldering, and brazing operations
Welding of cutting tools, mechanical gadgets, and composite materials
Specialized applications for pot bottom welding and heating elements

Annealing Processes

Annealing of various stainless steel products including basins, tubes, and tableware
Annealing of metal workpieces such as golf ball heads, brass locks, and aluminum products

Machine Features

Advanced Power Technology	Uses imported high-quality IGBT solid power module with advanced frequency conversion technology
Continuous Operation	Advanced cooling system enables 24-hour continuous operation at maximum power
Efficient Control	Constant current and power control function for improved heating efficiency and energy savings
Easy Installation	Simple installation - operates after connecting to 380V power and water connections
Programmable Operation	Programmable timing function with adjustable heating time, heat-preservation time, and current settings
Comprehensive Protection	Multi-level protection against overvoltage, overcurrent, overheating, and phase loss with self-diagnosis system
