ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

ISO 9239-1 flooring radiant heat tester

ASTM E 846 flammability test machine

radiant heat flux test apparatus

원래 장소:

중국 광둥

브랜드 이름:

YUYANG

인증:

CE

모델 번호:

YYF008

저희와 연락
인용문을 요구하세요
제품 세부 정보
열유속 범위:
0-15Kw/m2
열유속 정확도:
±0.2Kw/m2
배기 속도:
2.5±0.2m/s
불꽃 높이:
60-120mm 조절 가능
점화 시스템:
고전압 전자
가스 유량:
0.026±0.002L/S
총 전력:
2KW
전원공급장치:
AC 220V, 50Hz
복사 에너지 플럭스:
1.1~10.9kW/m2
열유속 측정기 범위:
0-50kw/m2
표면 방출량:
ε=0.95±0.05
작동 전압:
230V, 10A
작동 온도:
10°C ~ 35°C
복사 패널 각도:
30o
가스 공급:
프로판 및 공기 압축기
강조하다:

ISO 9239-1 flooring radiant heat tester

,

ASTM E 846 flammability test machine

,

radiant heat flux test apparatus

지불 및 배송 조건
최소 주문 수량
1
제품 설명

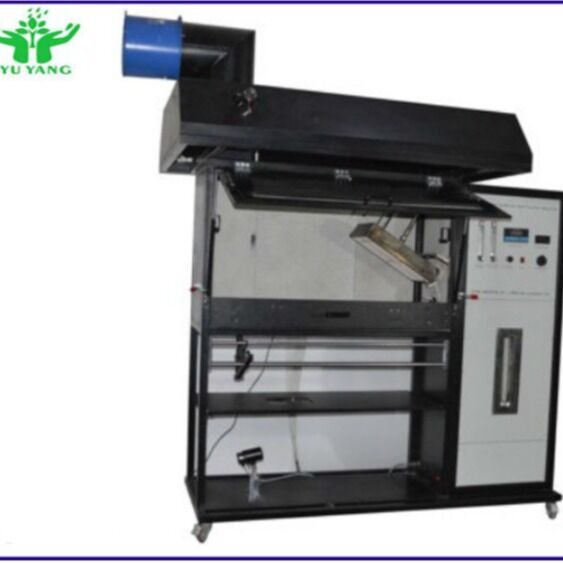

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus
This professional testing machine measures the critical radiant flux and flame spread characteristics of flooring materials according to international fire safety standards.
Product Overview
The ISO 9239 Radiant Flooring Panel test is the cornerstone of flooring materials reaction to fire tests in the Euroclass system. The apparatus measures flame spread of samples under thermal exposure using a radiant heat ignition source, simulating fire conditions that radiate onto flooring in adjacent rooms or corridors.
This flooring radiant panel test apparatus is also compliant with ASTM E648 and DIN 4102 Part 14 standards.
Compliance Standards
• GB/T 11785 - Flooring combustion performance measurement with radiant heat source
• ISO 9239-1:2002 - Flooring combustion performance determined with radiant heat resource
• ASTM E648 - Critical radiant flux of floor-covering systems using radiant heat
• ASTM E970 - Critical radiant flux of exposed attic floor insulation using radiant heat energy
• NFPA 253 - Critical radiant flux of floor covering systems using radiant heat energy
Key Features

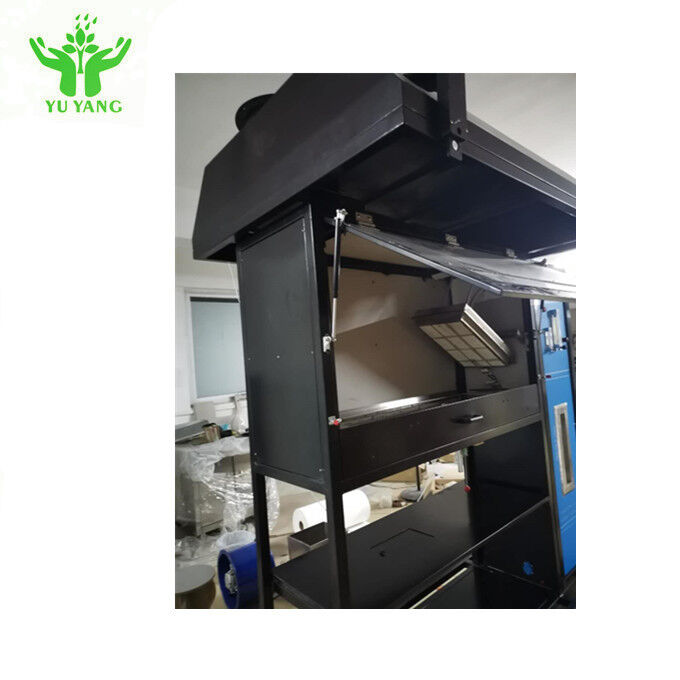

  • Insulated test chamber with calcium silicate insulation board and temperature-resistant observation window
  • Stainless steel sample support assembly on sliding platform for safe and easy sample loading
  • Gas-fuelled radiant panel inclined at 30° directed at horizontally mounted floor covering specimens
  • Radiant energy flux distribution from 10.9 kW/m² to 1.1 kW/m²
  • Dummy calibration specimen with holder and calibrated heat flux meter
  • Measures distance burned until flame-out, converted to equivalent critical radiant flux in kW/m²
  • Heat flux meter range: 0-50 kW/m² with surface emissivity ε=0.95±0.05
  • Integrated smoke measuring system according to DIN 50055

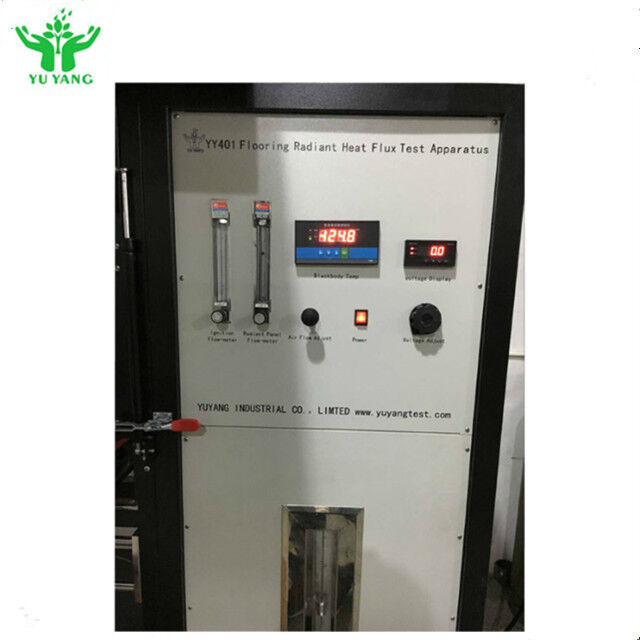

  • Control rack for convenient observation and operation during setup and calibration
  • Automatic ignition of radiant panel with safety cut-out
  • Automatic moving T-type ignition burner
  • Stainless steel hood with smoke measurement ports
Installation Requirements
Parameter Specification
Electrical 230 volts Nominal, 10 Amps
Ambient Temperature Operating range: 10°C to 35°C
Gas Supplies Propane and air compressor
Product Images
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 0
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 1
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 2
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 3
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 4
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 5
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 6
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 7
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 8
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 9
