YY D1929 ISO871 Plastic Ignition Temperature Testing Equipment

YY D1929 ISO871 Plastic Ignition Temperature Testing Equipment

ISO871 plastic ignition tester

fire testing equipment with warranty

D1929 temperature testing device

원래 장소:

중국

브랜드 이름:

YUYANG

인증:

CE

모델 번호:

YYF002

저희와 연락
인용문을 요구하세요
제품 세부 정보
강조하다:

ISO871 plastic ignition tester

,

fire testing equipment with warranty

,

D1929 temperature testing device

지불 및 배송 조건
최소 주문 수량
1세트
가격
pending
지불 조건
티/티
제품 설명

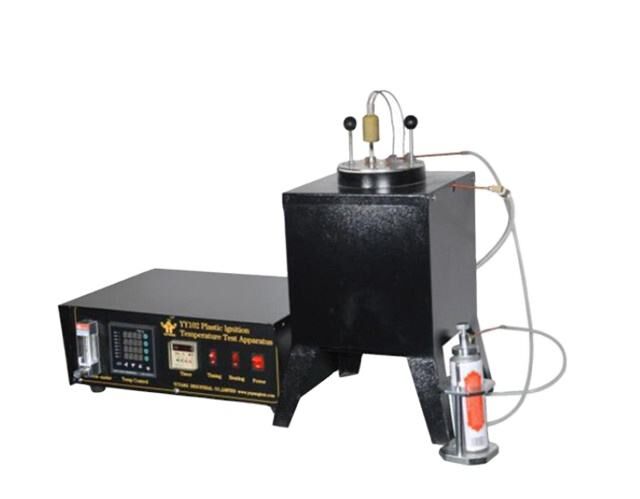

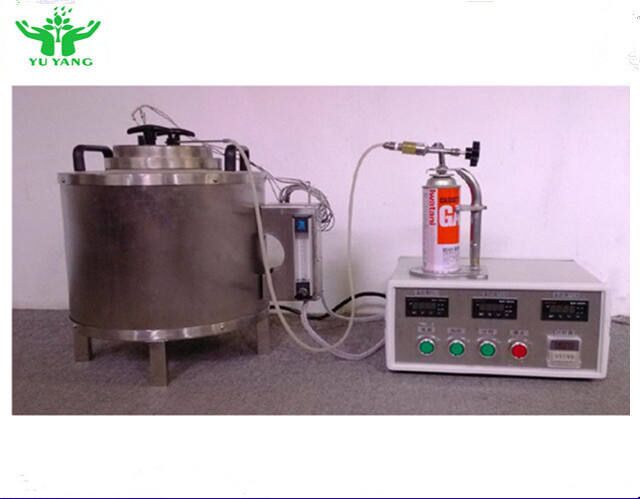

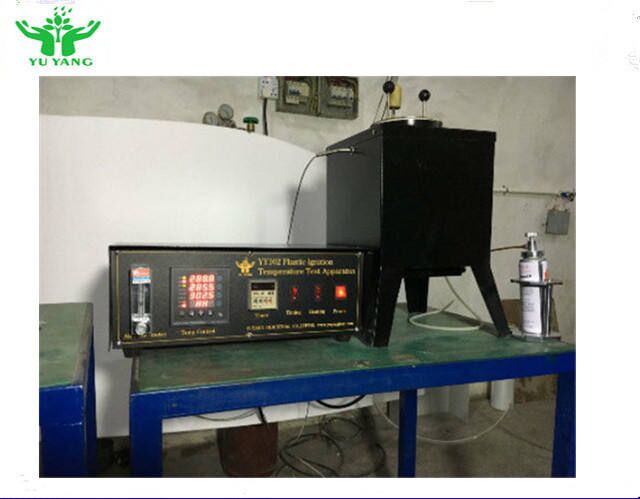

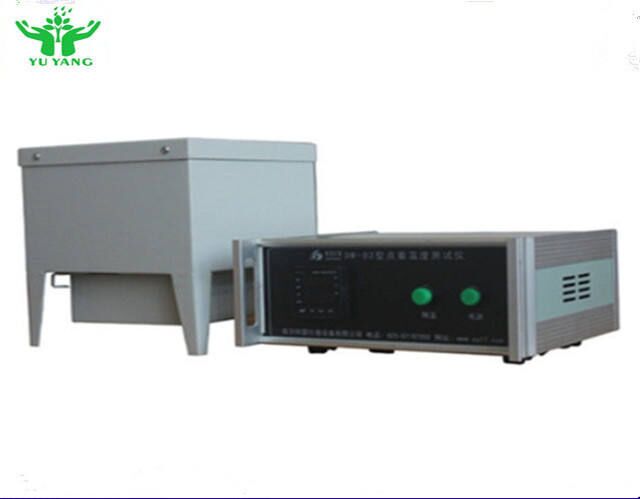

YY D1929 ISO871 Plastic Ignition Temperature Testing Equipment
Product Overview

This equipment decomposes and releases combustible gas from plastic materials under regulated testing conditions. The gas is ignited by an outer flame and burned for a specific duration to measure the minimum ignition temperature of the material. Test results enable comparative analysis between different materials.

Technical Specifications
  • Furnace tube: 100±5mm inner diameter, 240±20mm length, ceramic tube rated ≥750°C
  • Inner tube: 75±2mm diameter, 240±20mm length, rated ≥750°C
  • Stainless steel container: 9mm diameter, 48mm height
  • Butane lighter with 0.8±0.1mm nozzle diameter, adjustable 10-20mm flame height
  • Copper furnace maintains constant temperature between 150-450°C
  • Built-in fan with precise imported gas flow meter control
  • 60mm thick mineral wool insulation with stainless steel exterior
  • Three imported thermocouples for furnace and sample temperature detection
  • Timer accuracy: 0.1s
  • Automatic temperature programming
Operating Conditions
Ambient Temperature Room temperature ~ 40°C
Humidity ≤75%
Voltage AC 220V ±10V 50Hz
Power Consumption 600W
Temperature Control Accuracy ±2°C (adjustable 150-450°C)
Display Accuracy ±0.5°C
Dimensions Test furnace: 0.4 × 0.4 × 0.5 meters
Weight 20 kg
Product Attributes
Place of Origin Dongguan, China
Customized Support OEM, ODM
Brand Name YUYANG
Warranty 1 year
Model Number YYF002
Certification CE
Power Type Electronic
Packaging & Delivery
Selling Units Single item
Package Size 60 × 60 × 60 cm
Gross Weight 50.000 kg
