Name: EN817 Water Flow Testing Machine - 30L/min Flow Rate Tester with 0.6 MPa Pressure and Real-Time Data Display
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYE099
Price: 25,000.00 USD
Availability: InStock

집 > 상품 > 가연성 시험 장비 >

EN817 Water Flow Testing Machine - 30L/min Flow Rate Tester with 0.6 MPa Pressure and Real-Time Data Display

30L/min Water Flow Testing Machine

0.6 MPa Pressure Flow Rate Tester

Real-Time Data Display Flow Rate Testing Equipment

원래 장소:

중국

브랜드 이름:

YUYANG

인증:

모델 번호:

YYE099

저희와 연락

인용문을 요구하세요

제품 세부 정보

방법:

냉온수 정기시험

표준:

영국, ASTM, EN 200, EN 1112, EN 817

기능:

6bar 일반 압력 흐름 테스트 호스 스프링클러 앵글 밸브 흐름 테스트

범위:

2.5~30L/분

수온 범위:

실내온도-60℃

힘:

380V 50Hz 2.5 kw

재료:

304 스테인레스 스틸

강조하다:

30L/min Water Flow Testing Machine

0.6 MPa Pressure Flow Rate Tester

Real-Time Data Display Flow Rate Testing Equipment

지불 및 배송 조건

최소 주문 수량

가격

negotiable

포장 세부 사항

나무 상자

배달 시간

7-30 일

지불 조건

L/C,D/A,D/P,T/T,MoneyGram,웨스턴 유니온

EN817 컴퓨터로 제어되는 플러크 라이프 사이클 테스트 기계, 조정 가능한 속도 (0-15/분) 및 스테인리스 스틸 구조

가장 좋은 가격 을 구하라

비디오

EN817 Water Flow Testing Machine - 30L/min Flow Rate Tester with 0.6 MPa Pressure and Real-Time Data Display

가장 좋은 가격 을 구하라

비디오

EN817 Water Tap Flow Tester - PLC Controlled Faucet Flow Rate Testing Equipment with Thermal Printer & 304 Stainless Steel Construction

가장 좋은 가격 을 구하라

휴대용 PLC HF 인덕션 히터: AC 용조, 베어링 및 금속 난방

가장 좋은 가격 을 구하라

저희와 연락

8613825728654

sales09@yuyangtest.com

86-769-26622869

지금 연락하세요

제품 설명

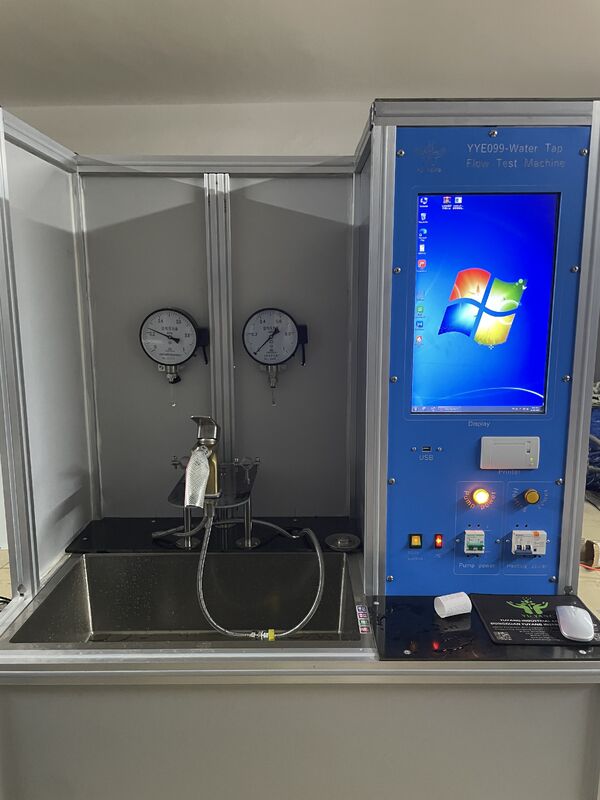

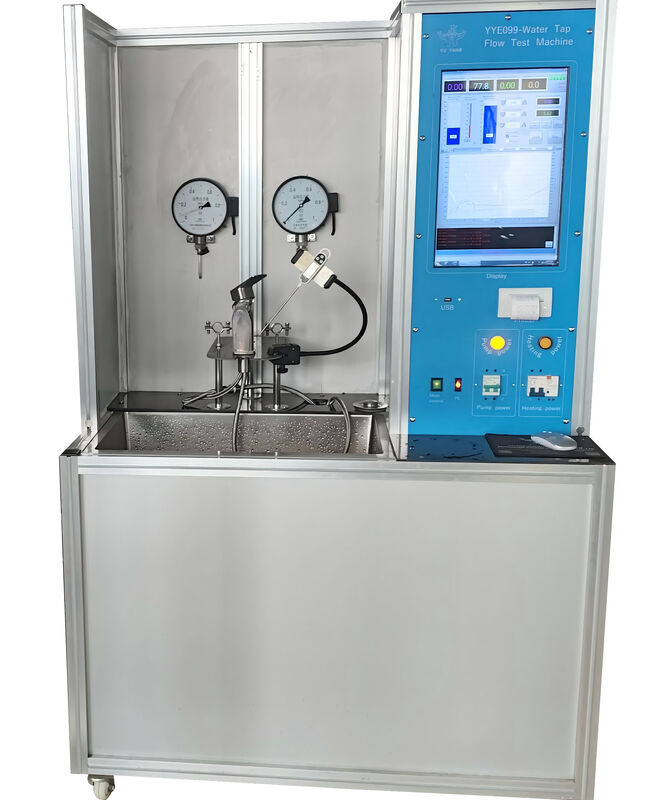

EN817 Professional Water Flow Testing Machine YYE099

Advanced automatic faucet flow rate testing equipment with PLC control, thermal printer, LED lighting, and exhaust fan. Designed for comprehensive testing of hoses, nozzles, pipes, and angle valves.

Application Scope

Ideal for testing water hoses, nozzles, pipes, angle valves, and similar components with flow rates up to 30 liters/minute and dynamic pressure less than 0.6 MPa.

Technical Specifications

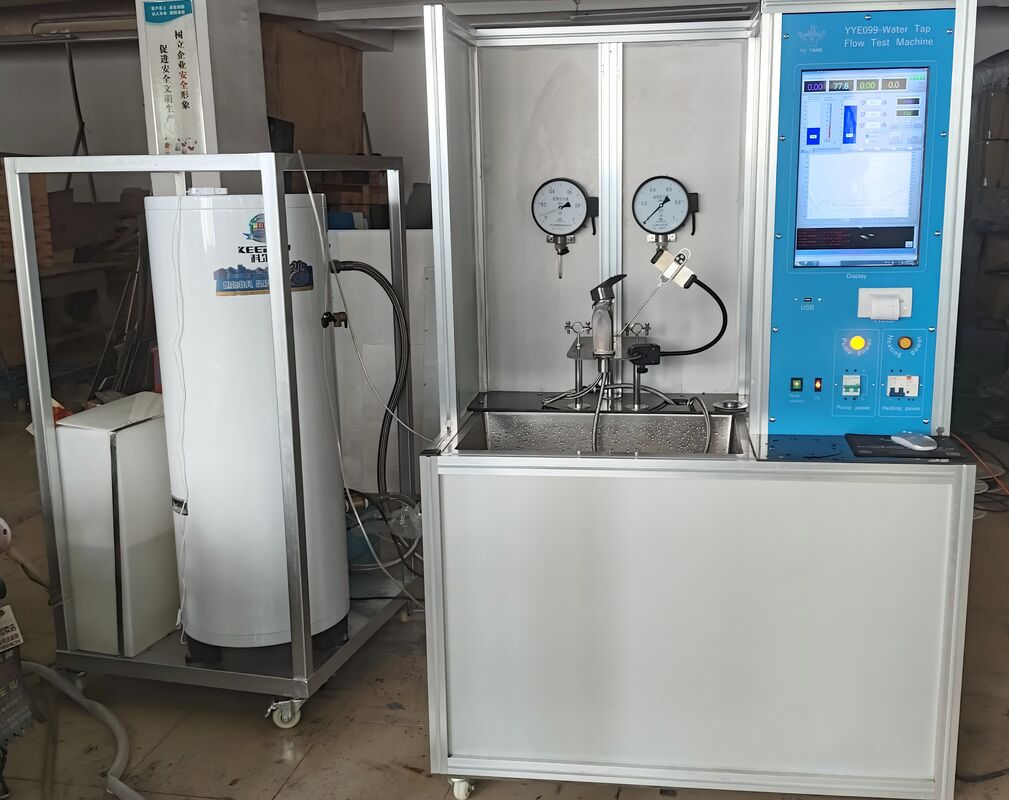

Frame Construction	Aluminum frame with water recycling system and storage tank
Water Supply System	Stainless steel water tank, stainless steel multi-stage pump, and piping
Pressure Regulation	Frequency converter for precise pressure and flow rate control
Mobility & Features	Four swivel casters for easy movement, LED lighting, and exhaust fan in testing chamber
Control System	PLC and host computer with real-time data display and thermal printer
Valve Compatibility	Multi-functional valve mounting plate accommodates most commercial faucets

Flow Rate Testing Capabilities

Minimum flow rate test: 0.14 MPa (20 psi)
Maximum flow rate test: 0.41 MPa
Nozzle maximum flow rate test: 0.55 MPa

Key Functions

Automatic adjustment of flow rate and pressure
Low-pressure flow rate testing capability

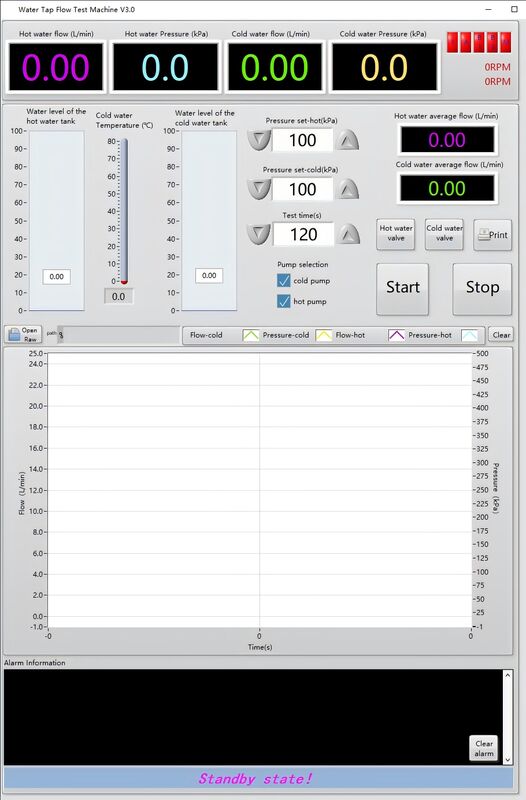

Real-time display of flow rate and pressure data
Time-flow curve plotting
Automatic test result printing

Professional Testing Solution: Complete water flow testing system with comprehensive data analysis, real-time monitoring, and automated reporting for quality control and compliance testing.
