4-Head Martindale Abrasion & Pilling Test Equipment Textile Laboratory Tester

4-Head Martindale Abrasion & Pilling Test Equipment Textile Laboratory Tester

4-head Martindale abrasion tester

textile pilling test equipment

laboratory textile abrasion tester

원래 장소:

중국

브랜드 이름:

YUYANG

인증:

CE

모델 번호:

YY001

저희와 연락
인용문을 요구하세요
제품 세부 정보
테스트 헤드:
4 (또는 6 및 8 헤드를 선택할 수 있음)
표시하다:
주도의
누적 개수:
1~999999
치수 (l x w x h):
880 × 600 × 410mm
전원공급장치:
AC380V, 180W 또는 AC220V, 180W
마모 저항 시험:
φ28.8mm
천 샘플 망치:
395 ± 2g
가구 장식 표본 망치:
594 ± 2g.
약탈 성능 테스트:
φ90mm
상대 속도:
50 R / 분
총중량:
124kg
강조하다:

4-head Martindale abrasion tester

,

textile pilling test equipment

,

laboratory textile abrasion tester

지불 및 배송 조건
최소 주문 수량
세트/세트
가격
pending
배달 시간
5
지불 조건
신용장, 전신환
공급 능력
20
제품 설명

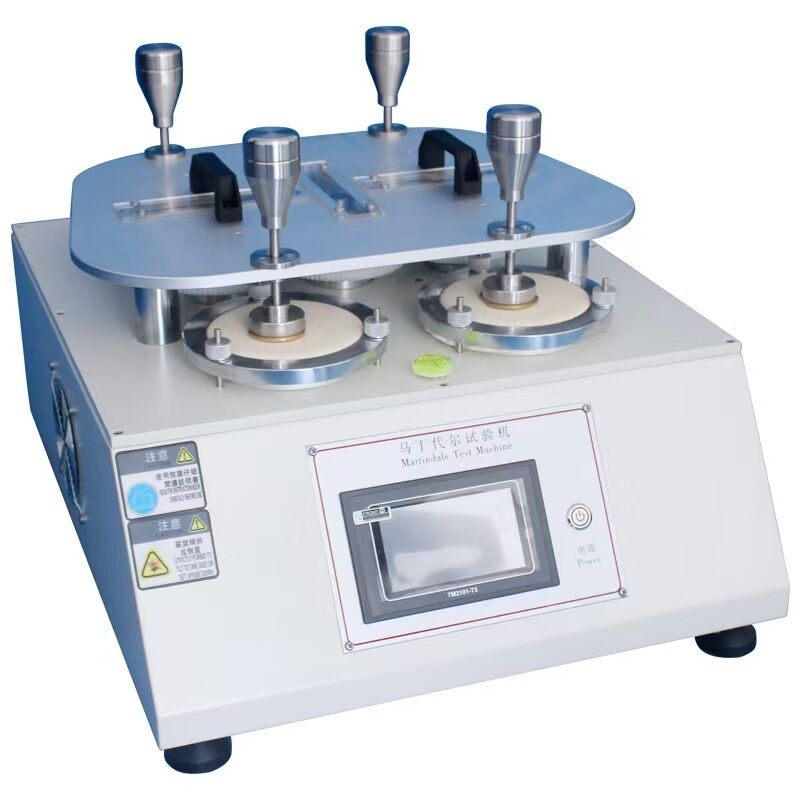

4-Head Martindale Abrasion & Pilling Test Equipment Textile Laboratory Tester
Product Overview

ISO 12947-2 Martindale Abrasion and Pilling Tester for Textile Resistance Testing Machine designed to determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abrade at low pressures and in continuously changing directions, with results compared against standard parameters.

4-Head Martindale Abrasion & Pilling Test Equipment Textile Laboratory Tester 0

The tester is equipped with electronic preset batch counter, timer and pooled sample clips and load device, compatible with international testing standards.

Technical Specifications
Attribute Value
Testing Head 4 (or 6 and 8 head could be selectable)
Display LED
Accumulate count 1~999999
Dimensions (L x W x H) 880×600×410mm
Power supply AC380V, 180W or AC220V, 180W
Pressurized Material Weight
  • Wear resistance test: Clamps component 200 ± 1g, cloth sample hammer 395 ± 2g, furniture decorations specimen hammer 594 ± 2g
  • Pilling test: Gripper assembly 155 ± 1g, heavy punch 260 ± 1g
  • Relative velocity: 50 r/min
Main Features
  • Learns from advantages of domestic and foreign similar equipment's design

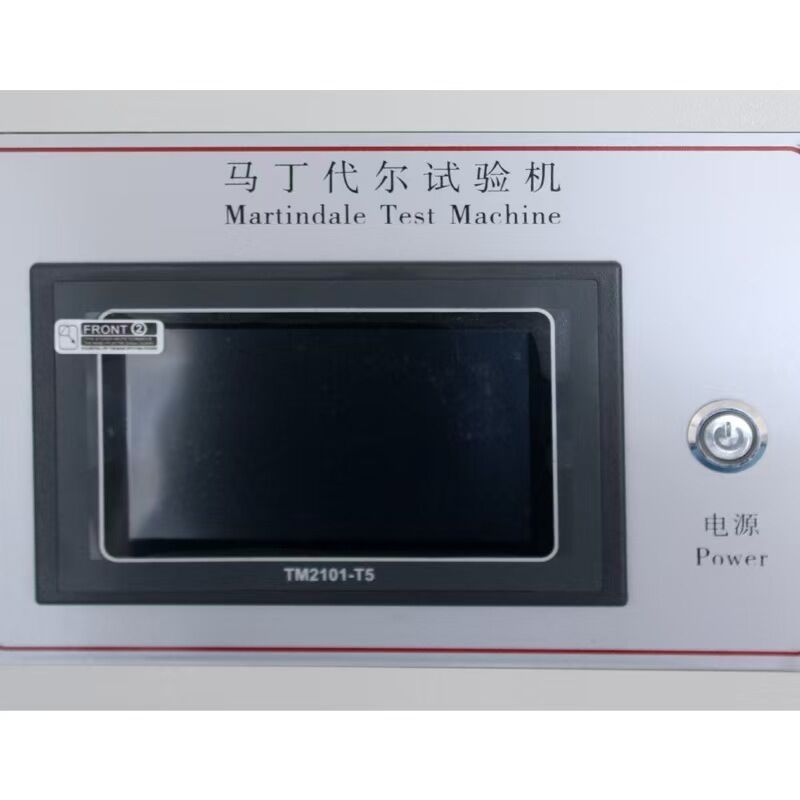

  • Elegant appearance with touch display screen
  • User-friendly interface, easy to operate
  • Computer system uses two counting methods
  • 8 station testing simultaneously to improve test efficiency
  • Two kinds of lissajous trajectories: 24mm x 24mm and 60.5mm x 60.5mm
  • Multiple trajectory matching accessories to adapt to various test method standards
Compliance Standards
  • BS 3424/5690
  • IWTO 40-88
  • BS EN 388/530
  • IWSTM 112/196
  • ASTM 4966/4970
  • IS 12673
  • JIS L1096
  • SFS 4328
  • PR EN ISO 12947-1
  • PR EN ISO 12945-2
  • SATRA TM31
  • ISO 20344
Standard Accessories
  • Ballot sheet: 1pcs
  • Bowl shape specimen kit: 1pcs
  • O-rings: (4,6,8)
  • Abrasion weights kit: (4,6,8)
  • Pilling weights kit: (4,6,8)
  • Power line: 1pcs

Optional purchase consumables: wool fabric, felt, sponge, EMPA, scale, SM50 scales

4-Head Martindale Abrasion & Pilling Test Equipment Textile Laboratory Tester 1 4-Head Martindale Abrasion & Pilling Test Equipment Textile Laboratory Tester 2
Manufacturer Information

DONGGUAN YUYANG INSTRUMENT CO., LTD is located in Xinhe Industrial Area, Wanjiang District, Dongguan City. Also YUYANG INDUSTRIAL CO., LIMITED is our private-owned cooperation in HK.

By supporting from Mechanical CNC and Software R&D core team of YUYANG Manufacturing engineering institute, YUYANG specializes in producing and R&D for flammability testing machine, textile testing machine, toys testing equipment, Footwear Testing Equipment.

Continue the advanced design technology and concept, excellent technology of producing and outstanding system of quality management, YUYANG aims at "manufacture carefully, service by heart" devoting the best products, counseling and service to schools, manufacturing enterprise, and third party testing industry.

Key Customers Include: SGS in France, SGS in Vietnam, SGS in China, SGS in Korea, Intertek in China, SAT in China, BACL in Shenzhen, NSF in Shanghai, ITS, BV, TUV etc.

The quality proves value; the effort brings success. What your concerning is our struggling all the time...
