원래 장소:
중국
브랜드 이름:
YUYANG
인증:
CE
모델 번호:
YY054

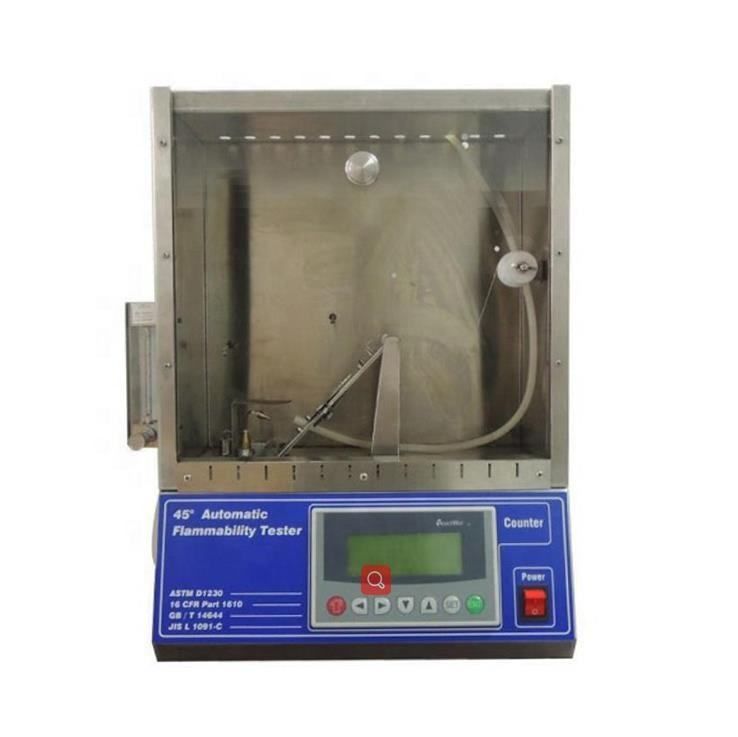

The 45-degree flammability tester is essential textile testing equipment designed for quality control in fabrics, ensuring compliance with fire safety standards across various industries.
| Attribute | Value |
|---|---|
| Place of Origin | Guangdong, China |
| Customized Support | OEM, ODM |
| Power | Electronic |
| Brand Name | YUYANG |
| Model Number | YY054 |
| Material | Stainless Steel |
| Dimension | 580*410*860mm |
| Burner | Diameter 11mm ± 0.3mm |
| Weight | 40kg |
| Power Supply | 220V AC 50HZ |
| Packaging Details | Plywood Box |
| Selling Units | Single item |
| Package Size | 32.9X32.9X76.7 cm |
| Gross Weight | 23.000 kg |
The 45-degree flammability tester is widely used in the textile industry for testing the flammability of textiles when exposed to a heat source. This equipment is essential for fire safety testing of:
With tightening safety standards, flammability testing has become crucial for compliance checks. The tester is used by manufacturers, testing institutions, research facilities, and laboratories for material fire performance research.
Rotating cycle number can be pre-settable with adjustable chain length.
Automatically stops after completing preset rotating cycles.
Platinum steel nail hammer ensures testing accuracy and extends service life.
Flame spread rate detection: Accurately measures flame spread time and distance to evaluate fire resistance performance.
Sample combustion time measurement: Records time from ignition to complete extinguishing, crucial for evaluating self-extinguishing properties.
Flame and smoke analysis: Measures flame height and smoke generation to detect material flammability and air quality impact.
Droplet behavior detection: Observes melting and droplet phenomena during combustion, important for high-safety applications.
The standard test method follows ASTM D1230, exposing textiles to a standard flame at 45 degrees while recording ignition time, burning time, and residue. This determines the textile's flammability and fire resistance.
This tester is essential for:
It's particularly valuable for producing fire-resistant fabrics or products requiring compliance with specific fire regulations.
For more information, visit our 45 Degree Automatic Flammability Tester product page.
