Name: ISO-Certified Ignitability Test Apparatus for Building Materials
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY510
Price: 2250 USD
Availability: InStock

집 > 상품 > 건축재료 불 검사자 >

ISO-Certified Ignitability Test Apparatus for Building Materials

ISO-certified ignitability test apparatus

building material fire tester

fire test apparatus for construction

원래 장소:

중국

브랜드 이름:

YUYANG

인증:

ISO 11925-2

모델 번호:

YY510

저희와 연락

인용문을 요구하세요

ISO-Certified Ignitability Test Apparatus for Building Materials

제품 세부 정보

제품 이름:

건축물 발화성 시험 장치

신청:

건축 자재

힘:

전자

전압:

220V

공급 전압:

AC220V±10%,50Hz

가스 공급원:

>95% 프로판 가스

가스 압력:

10kpa~50kpa

연도 풍속:

0.7m/s

강조하다:

ISO-certified ignitability test apparatus

building material fire tester

fire test apparatus for construction

지불 및 배송 조건

최소 주문 수량

1pc

가격

$2250

포장 세부 사항

나무 상자

배달 시간

15-20 일

지불 조건

t/t

공급 능력

10 세트/월

ISO-Certified Ignitability Test Apparatus for Building Materials

가장 좋은 가격 을 구하라

비디오

BSS 7239 큰 이중층 열-저항 유리 연기 밀도 테스트 챔버

가장 좋은 가격 을 구하라

저희와 연락

86-769-26622869

지금 연락하세요

제품 설명

ISO-Certified Ignitability Test Apparatus for Building Materials

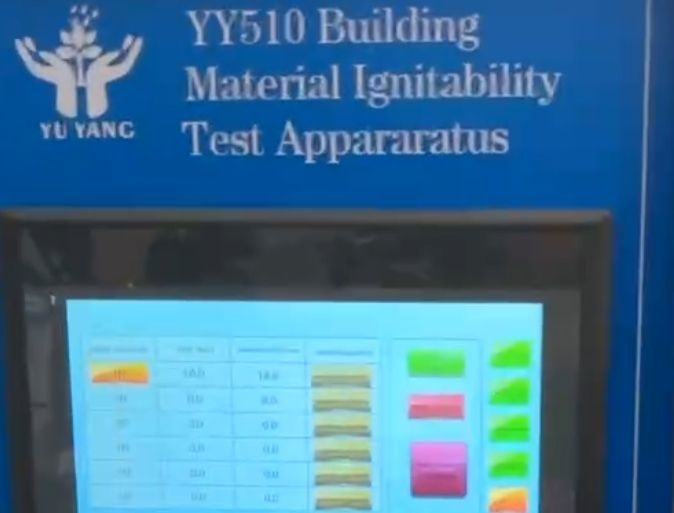

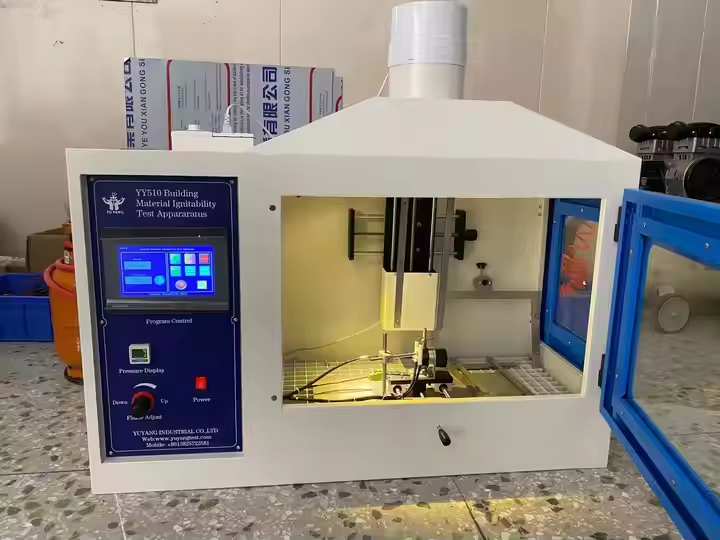

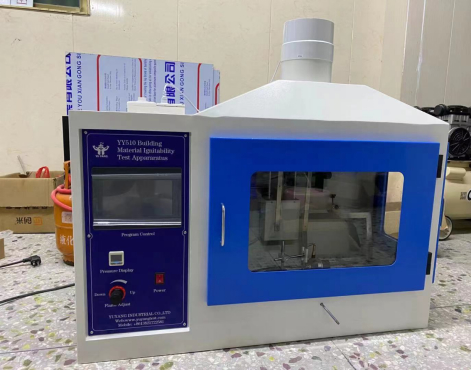

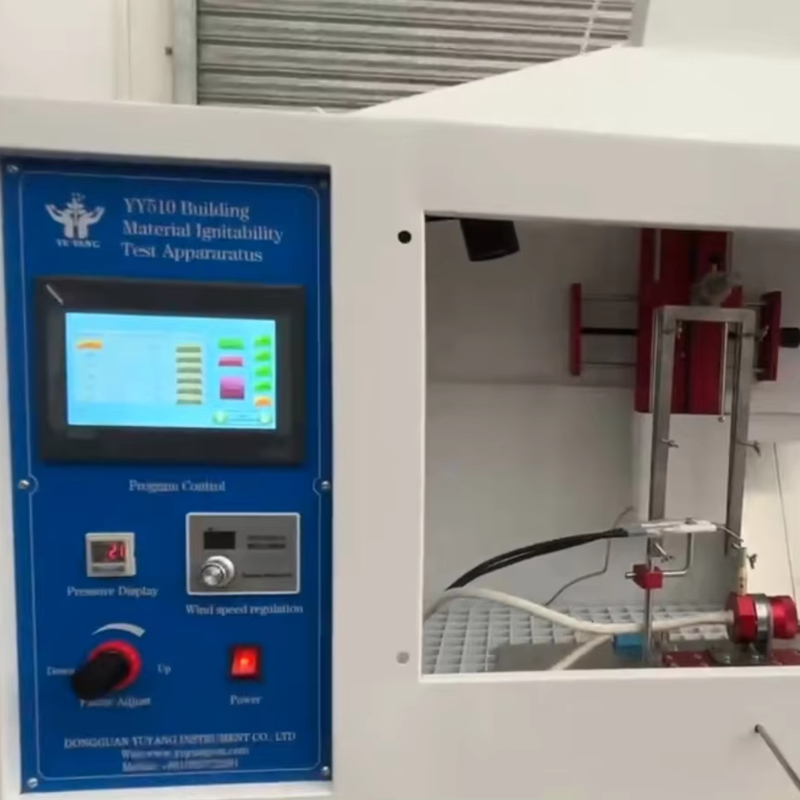

YY510 Building Material Ignitability Test Apparatus

Description

Ignitability test, also called single-flame source test. Test apparatus corresponds to standard EN ISO 11925-2. Test results of the building structure can be classified according to standard 13501-1.

The dimensions of the test specimens shall be (250) mm long by (90) mm wide.

45°-tilted burner is advanced horizontally until the flame (length 20 mm) reaches the pre-set contact point with the test specimen. Tests may need to be conducted to either surface exposure or edge exposure, or both. The flame application time is 15 or 30 seconds as required by sponsor.

During the test following is recorded: whether ignition occurs; whether the flame tip reaches 150 mm above the flame application point, and the time at which this occurs; whether ignition of the filter paper occurs; observations of physical behavior of the test specimen.

Specifications

This apparatus made up of two parts: burning chamber and control device.
Power supply: AC220V±10%,50Hz
Burner: diameter 0.17mm burner with regulator; four ￠4mm air suction inlet
Gas source: >95% propane gas (user should provide for themselves)
Gas pressure: 10kpa~50kpa
Flue air velocity: 0.7m/s only on condition of burner burning and draught hood open
Time adjustment of continuous flame: 0 ~ 99minutes99seconds
Time adjustment of afterflame: 0 ~ 99minutes99seconds
Timer accuracy: ≤1s/h
Anemometer: hot wire, accuracy ±0.1m/s, for measuring the airflow velocity in the upper outlet of the combustion chamber
Burner angle: 45°
Material: stainless steel
Observing window: two big viewing windows on the front and right side
Whole set: control device, burning chamber, burner, magnetic valve, flame lighter, signal control line and specimen holder
Equipped with a digital anemometer/thermometer and a stopwatch for simple but accurate measurement of the flow, temperature and time

Standards

GB / T8626-2007 Test Method of Flammability for Building Materials
EN ISO 11925-2:2010-Reaction to fire tests- Ignitability of building products subjected to direct impingement of flame-Part 2: Single-flame source test

Specimen Holder

Packing List

NO.	Name	Quantity	Packing Mode
1	Collector	1
2	Specimen holder	2
3	Template	2
4	Burner spacer	2	5mm-16mm
5	Flame-height measuring device	1
6	Igniter	1
7	Aluminum foil paper	1
8	Filter Paper	1
9	Anemometer	1
10	Instruction Manual	1
11	Quality Assurance	1
12	Product Certificate	1
13	Warranty Card	1
