원래 장소:
중국
브랜드 이름:
YUYANG
인증:
CE
모델 번호:
YY510

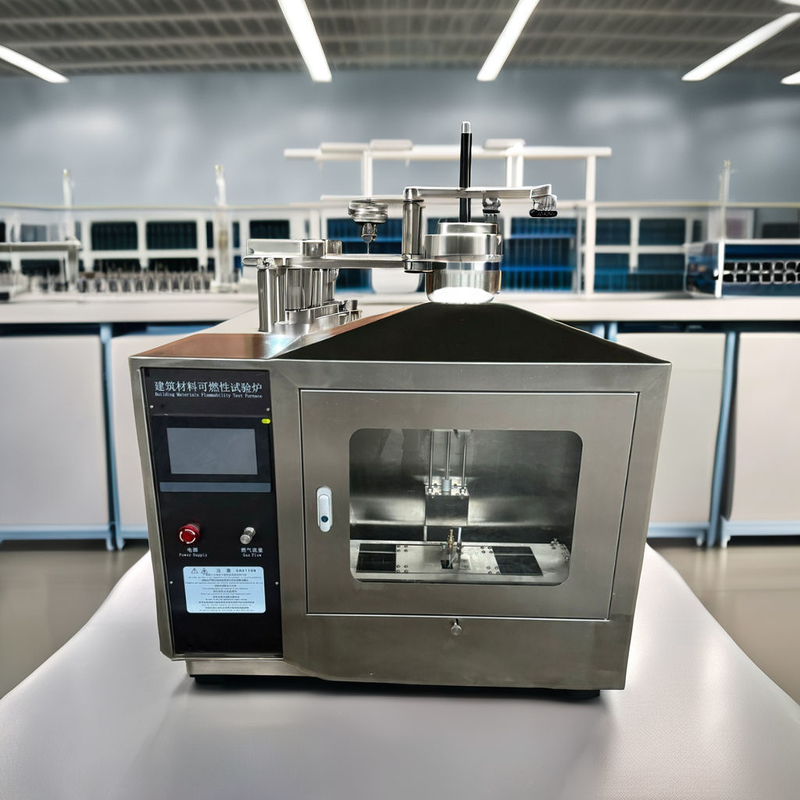

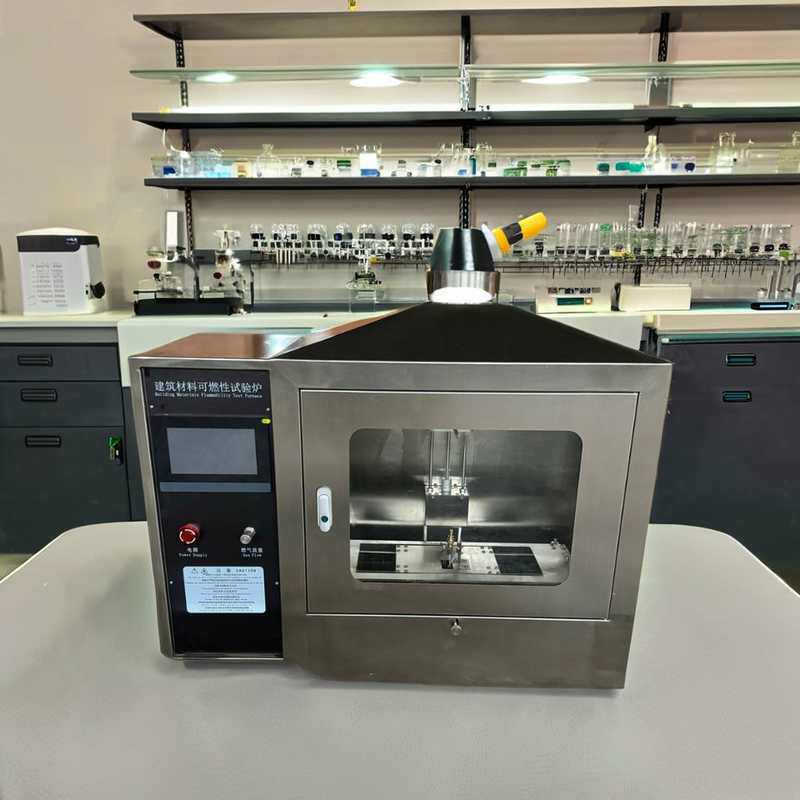

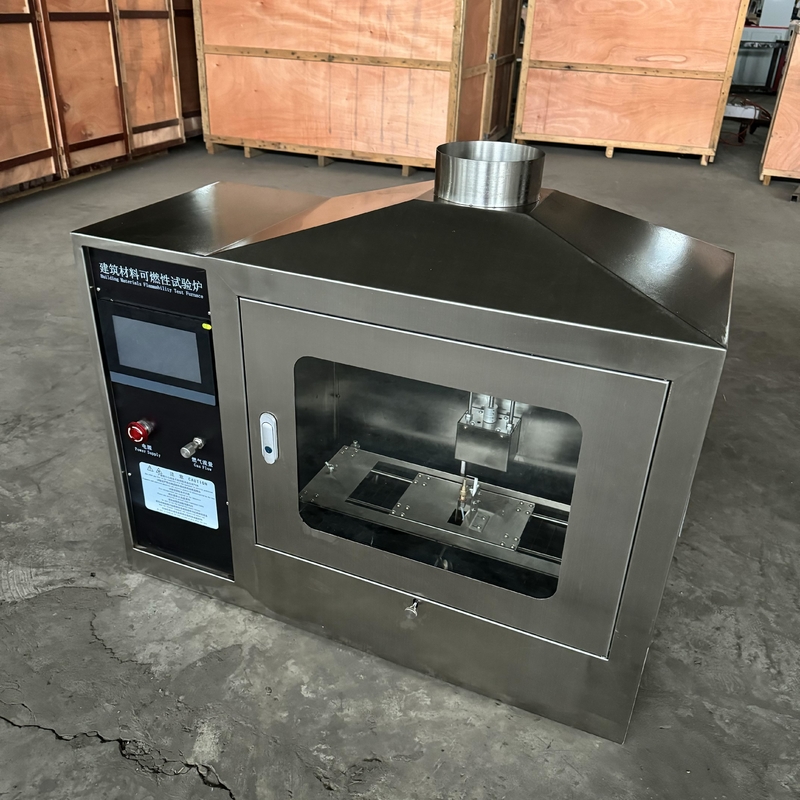

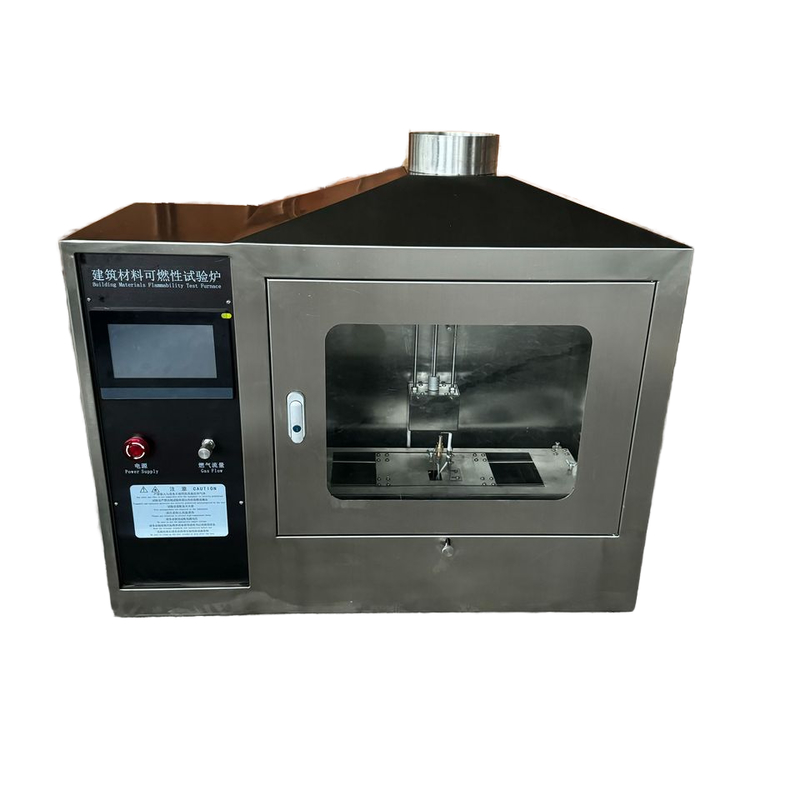

Ignitability test, also called single-flame source test. Test apparatus corresponds to standard EN ISO 11925-2. Test results of the building structure can be classified according to standard 13501-1.
The dimensions of the test specimens shall be (250) mm long by (90) mm wide.
45°-tilted burner is advanced horizontally until the flame (length 20 mm) reaches the pre-set contact point with the test specimen. Tests may need to be conducted to either surface exposure or edge exposure, or both. The flame application time is 15 or 30 seconds as required by sponsor.
During the test following is recorded: whether ignition occurs; whether the flame tip reaches 150 mm above the flame application point, and the time at which this occurs; whether ignition of the filter paper occurs; observations of physical behavior of the test specimen.
| NO. | Name | Quantity | Packing Mode | Confirm |
|---|---|---|---|---|
| 1 | Collector | 1 | ||
| 2 | Specimen holder | 2 | ||
| 3 | Template | 2 | ||
| 4 | Burner spacer | 2 | 5mm-16mm | |
| 5 | Flame-height measuring device | 1 | ||
| 6 | Igniter | 1 | ||
| 7 | Aluminum foil paper | 1 | ||
| 8 | Filter Paper | 1 | ||
| 9 | Anemometer | 1 | ||
| 10 | Instruction Manual | 1 | ||
| 11 | Quality Assurance | 1 | ||
| 12 | Product Certificate | 1 | ||
| 13 | Warranty Card | 1 |
