원래 장소:
중국
브랜드 이름:
YUYANG
인증:
CE
모델 번호:
YY056
비디오
비디오
| Attribute | Value |
|---|---|
| Material | Stainless steel |
| Machine Length | 1600mm |
| Speed of Transmission | 18-40 meter/minute |
| Height of Inspection Window | 10cm |
| Width of Inspection Window | 40cm |
| Detecting Width | 40-120CM |
| Highest Sensitivity | Ferrous 0.5mm diameter ball |

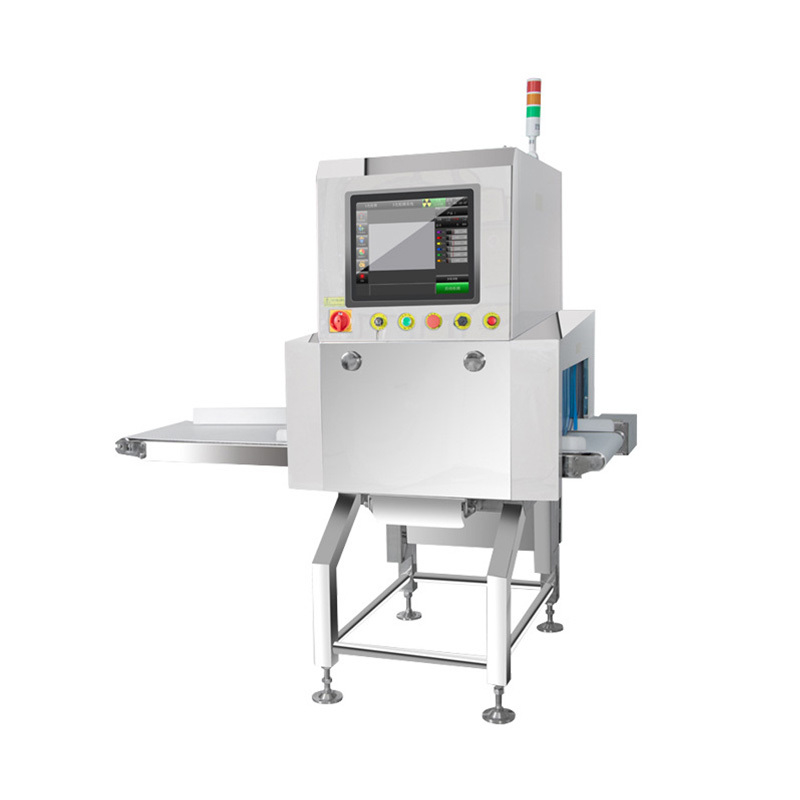

Transmission type all-digital metal detection machine is a new generation of microcomputer intelligent metal detection equipment. The product has high sensitivity and stable performance. It breaks through the technical bottleneck that most equipment only responds sensitively to magnetic substances, and has excellent elimination performance for products with moisture and frozen products. The device can detect metals such as iron and non-iron, and can be widely used for metal detection in demanding applications such as food, medicine, and toys.
Primarily used for: sauces, sausages, dumplings, ham, soup, sugar products, pickled foods, salted foods, fast food and other non-food industries. Features high detection sensitivity, anti-interference ability and waterproof standard for hard-working conditions. Detects mixed or lost needles, wires, or lead, copper, aluminium, tin, stainless steel and other kinds of metal in food, raw materials or products.
| Detected Height (mm) | 80 | 100 | 150 | 200 | 250 | 300 | 350 |
|---|---|---|---|---|---|---|---|
| Belt Width (mm) | 250 | 250 | 400 | 400 | 400 | 400 | 400 |
| Belt Length | 1500 | ||||||
| Detector Sensitivity (mm) |
Fe 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 SUS 1.0 | 2.0 | 2.5 | 2.5 | 3.0 | 3.5 | 4.0 N-Fe 1.0 | 1.5 | 2.0 | 2.0 | 2.5 | 3.0 | 3.5 |
||||||
| Speed of Belt | 25M/min (Fixed speed); Adjustable 5-40 M/min (please inform before order) | ||||||
| Load Ability | 20KG | ||||||
| Count | 100 | ||||||
| Warning Method | Sound and light alarm; Belt can be stopped, continue running or return (selectable in PLC controller) | ||||||
| Reject Ways | With auto-reject system, belt continues while rejecting goods | ||||||
| Application | Non-package, plastic package, paper bag or box (non-metallic) products | ||||||
| Work Environment | Temperature -10℃ to 40℃, relative humidity 30-90% | ||||||
