원래 장소:
중국
브랜드 이름:
YUYANG
인증:
CE
모델 번호:
YY-5622
| Attribute | Value |
|---|---|
| Test rate | 10-60 times/minute adjustable |
| Bending angle | 10°-180°/360° adjustable |
| Stations | Simultaneous testing of 6 plugs at a time |
| Bending number | 0-999999 can be preset |
| Weight | 50\100\200\300\500g each 6 pcs |
| Volume | 85*60*75cm |
| Weight | 100kg |

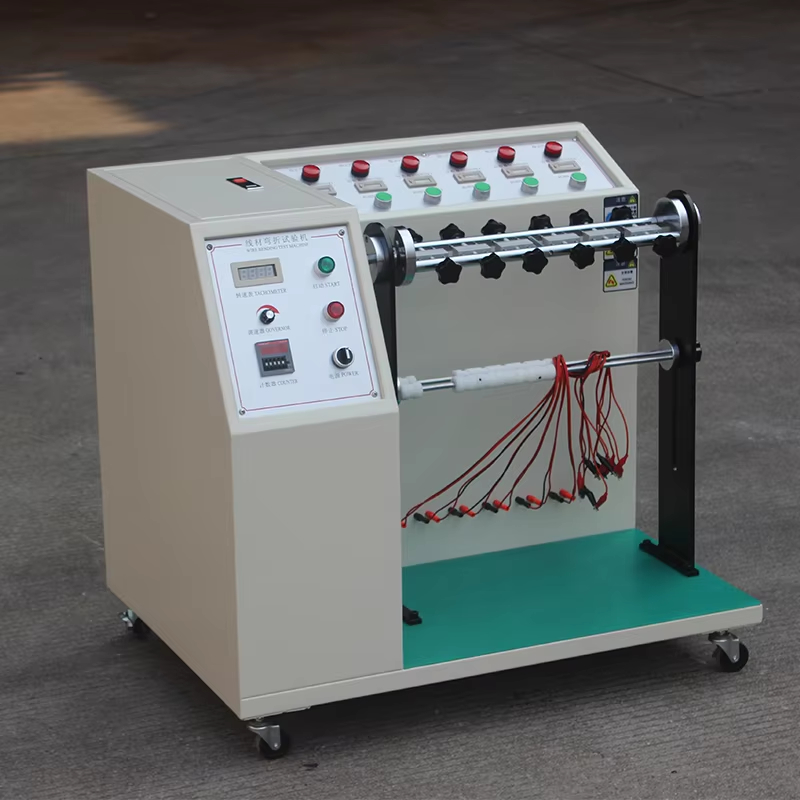

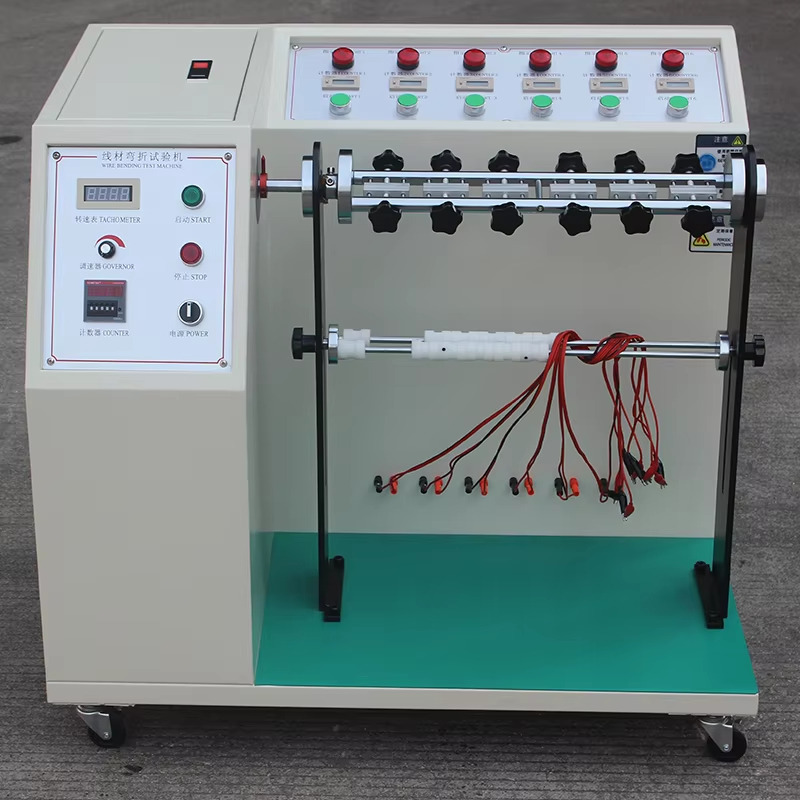

Wire And Cable Lead Bending Tester
This tester complies with UL817 and other relevant standards "General Safety Requirements for Flexible Cord Components and Power Cords". It is suitable for power cords and DC cords to conduct bending test by relevant manufacturers and quality inspection departments.
This machine specializes in testing plug lead wire and cable bending strength; speed using photoelectric sensors to collect signals transmitted to the digital display table, directly adjust the infinitely variable speed controller can be read out the value.

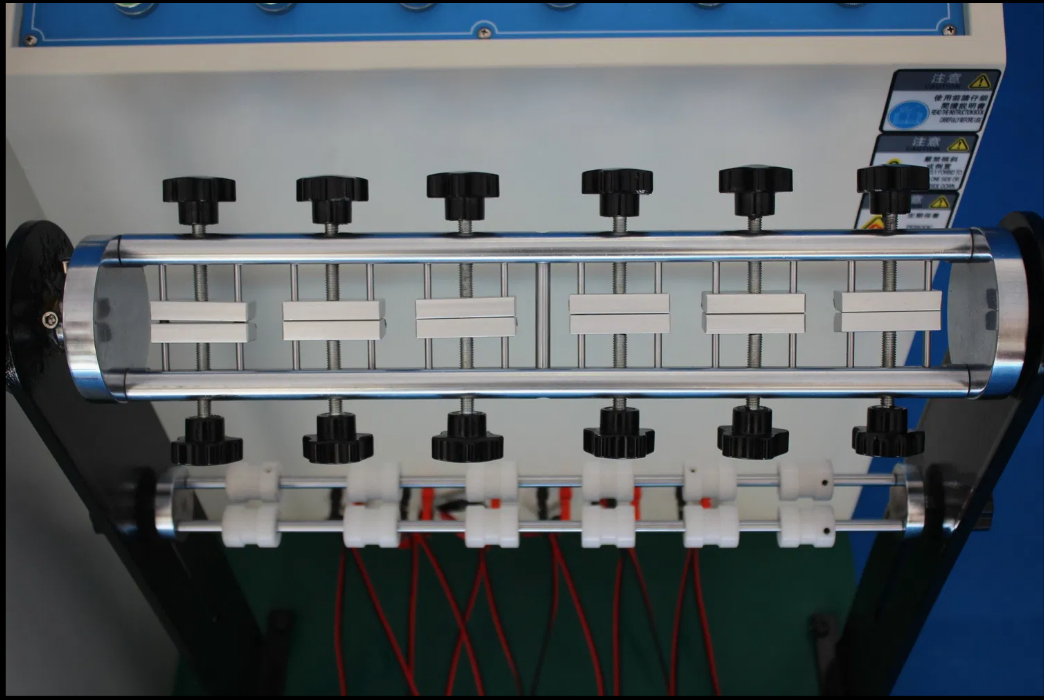

Test method: Test method is to fix the test material in the fixture, and add a certain amount of load, the fixture swaying left and right, after a certain number of times, to check the rate of breakage, or to the inability to energize the total number of times to view their counts, to be able to stop the work of their own movement.
