Name: Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY1009
Price: 11957.00 USD
Availability: InStock

집 > 상품 > 환경 테스트 챔버 >

Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production

salt spray corrosion test chamber

salt spray test machine for mobile

environmental test chamber with warranty

원래 장소:

중국

브랜드 이름:

YUYANG

인증:

모델 번호:

YY1009

저희와 연락

인용문을 요구하세요

Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production

제품 세부 정보

모델:

YY1009-108L

테스트 룸 크기 (WXLXH) (MM):

600*450*400

기계 크기 (L × W × H) (MM):

1070*600*1180

실험실 온도:

NSS.ACSS 35°C ± 1°C / CASS 50°C ± 1°C

세츄레이터 온도:

NSS.ACSS 47 ° C ± 1 ° C / CASS 63 ° C ± 1 ° C

습기:

85%~98%RH

온도 범위:

± 0.5oC

염수 분무 가라앉다:

1.0~2.0ml/80cm2/h

전원 공급 장치:

AC220V 50Hz

강조하다:

salt spray corrosion test chamber

salt spray test machine for mobile

environmental test chamber with warranty

지불 및 배송 조건

최소 주문 수량

세트 세트 /

가격

pending

배달 시간

지불 조건

L/C (신용장), 전신환

공급 능력

108L 소금 스프레이 회전성 부식 테스트 챔버 전자 장비

가장 좋은 가격 을 구하라

항온항습 고저온 기후 챔버

가장 좋은 가격 을 구하라

비디오

실험실 용품 프로그래밍 가능한 항온항습 챔버 시험 장비

가장 좋은 가격 을 구하라

220v 전압 전류 전력 모니터 전력 요인 주파수 에너지 미터와 비투미누스 재료의 UV 노화 시험 램프

가장 좋은 가격 을 구하라

저희와 연락

86-769-26622869

지금 연락하세요

제품 설명

Salt Spray Corrosion Test Chamber Salt Spray Test Machine for Mobile Production

Product Specifications

Attribute	Value
Model	YY1009-108L
Test room size (WxLxH)(mm)	600450400
Machine size (L×W×H) (mm)	10706001180
Lab temperature	NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Saturator temperature	NSS.ACSS 47°C ± 1 °C / CASS 63°C ± 1 °C
Humidity	85%~98%RH
Temperature range	± 0.5ºC
Salt spray subside	1.0~2.0ml/80cm2/h
Power supply	AC220V 50HZ

Product Description

Salt spray test chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after this anti-corrosive treatment to test the corrosion resistance of their products.

Construction Details

The tester body is made of light gray impact-resistant PVC board with thickness of 5mm and durable temperature at 85℃. The edge is surrounded by three-dimensional reinforcement thickness of 5mm, solid structure
The sealing of the test chamber cover is made of PVC impact-resistant board with a thickness of 5mm, which does not distort and deform when used at high temperatures. The edge of the inner and outer double-thickness, to prevent distortion and deformation due to long-term high temperature. Thickness 15mm

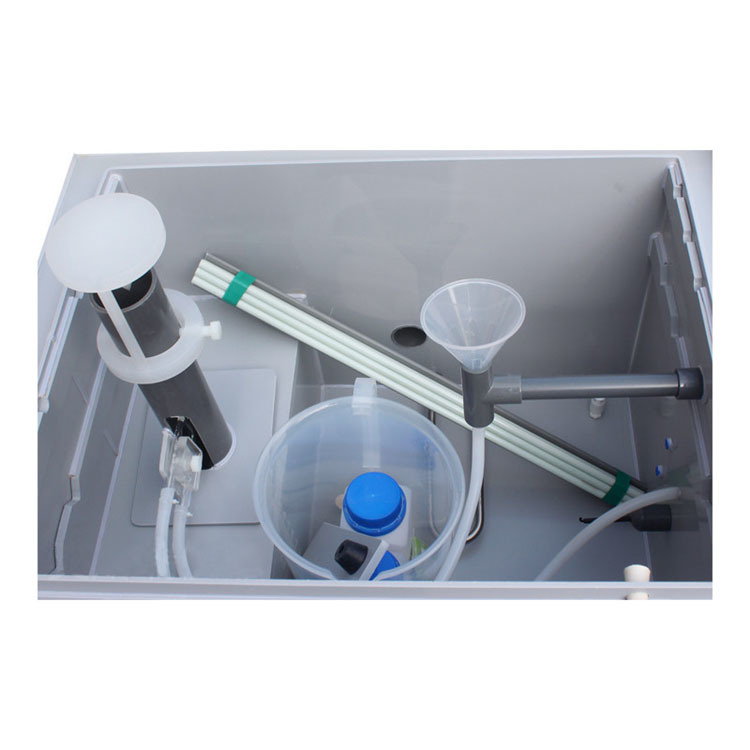

Hidden one-piece refill bottle, easy to clean and easy to operate
The saturated air barrel adopts SUS#304 stainless-steel high-pressure barrel with the best insulation effect
The specimen placing table is made of 8mm temperature-resistant ABS board, with strong load-bearing capacity, and the test specimen holder adopts plane indexing type, with arbitrary angle adjustment, even fog falling on all sides, and the fog is completely consistent, with accurate test results and a large number of test specimens placed

Compliance Standards

GB/T 2423.17, IEC60068-2-11, ISO4628-3, ISO9227, ASTM B117, JIS-Z2371, JIS-G3141, GJB 150.1, MIL-STD-810F, MIL-STD-883E and so on.
